Schneider Electric 9001K2L35LGGH13 Harmony 9001K Series Illuminated Push Button, Panel Mount, 30mm Cutout, Spdt, IP66

View Brand

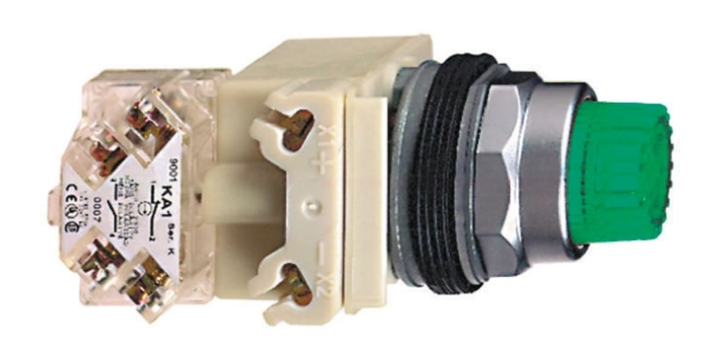

Schneider Electric 9001K2L35LGGH13 Harmony 9001K Series Illuminated Push Button, Panel Mount, 30mm Cutout, Spdt, IP66

Brand:	SCHNEIDER ELECTRIC
Model:	9001K2L35LGGH13

Specifications

View other Push Button Switches dimensions or variations

Illuminated

Yes

Maximum AC Voltage

24 V

Maximum DC Voltage

24 V

Push Button Colour

Green

Push Button Style

Round

Panel Cut Out Diameter

30 mm

Better World Verification

Green Premium

Series

Harmony 9001K

Mounting Type

Panel Mount

Minimum Operating Temperature

-25° C

Maximum Operating Temperature

+70° C

Contact Configuration

SPDT

IP Rating

IP66

Terminal Type

Screw

Manufacturer Part No.

9001K2L35LGGH13

Better World Product

Yes

Product Description

RM 1,012.69

Quantity:

This item is sold by

SG-4570630354

Shop by Specification Table

You can find items with similar specifications from the table below.

Push Button Switches

5 Items

Contacts Type And Composition

1 NO + 1 NC, 2 NO, 1 NO, 1 NC, Without contact block

Operator Profile

Orange flush, unmarked, Green projecting, unmarked, Black flush, unmarked, Black flush, Flush

Standards

EN/IEC 60947-5-1 EN/IEC 60947-1 CSA C22.2 No 14 UL 508 JIS C8201-5-1 JIS C8201-1, UL 508 CSA C22.2 No 14 IEC 60947-1 IEC 60947-5-1 JIS C8201-5-1 JIS C8201-1, IEC 60947-1 CSA C22.2 No 14 JIS C8201-5-1 UL 508 IEC 60947-5-1 JIS C8201-1, IEC 60947-5-5 CSA C22.2 No 14 IEC 60947-5-1 JIS C8201-5-1 IEC 60947-5-4 UL 508 IEC 60947-1 JIS C8201-1, IEC 60947-1 UL 508 JIS C8201-5-1 IEC 60947-5-4 IEC 60947-5-1 CSA C22.2 No 14 JIS C8201-1

Terminals Description Iso N°1

(11-12)NC, (21-22)NC (13-14)NO, (21-22)NC, (13-14)NO (21-22)NC, (13-14)NO (11-12)NC

Electrical Reliability

Λ < 10exp(-6) at 5 V, 1 mA in clean environment conforming to IEC 60947-5-4 Λ < 10exp(-8) at 17 V, 5 mA in clean environment conforming to IEC 60947-5-4, Λ < 10exp(-6) at 5 V and 1 mA in clean environment conforming to IEC 60947-5-4 Λ < 10exp(-8) at 17 V and 5 mA in clean environment conforming to IEC 60947-5-4, Λ < 10exp(-6) at 5 V, 1 mA in clean environment conforming to EN/IEC 60947-5-4 Λ < 10exp(-8) at 17 V, 5 mA in clean environment conforming to EN/IEC 60947-5-4, Λ <= 10exp(-6) at 17 V and 5 mA conforming to IEC 60947-5-4, Λ <= 10exp(-6) at 17 V, 5 mA conforming to EN/IEC 60947-5-4
