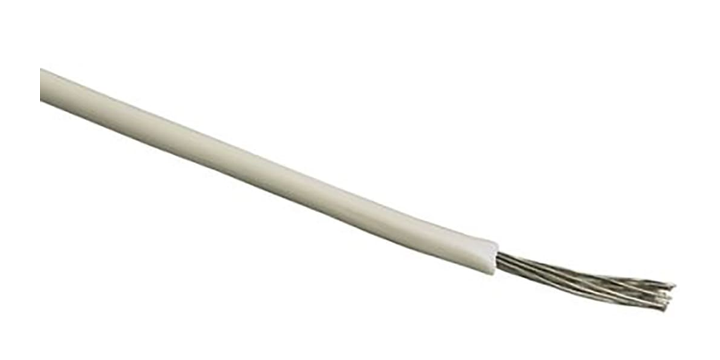

Rs Pro 8158624 White 4 Mm² Hook up Wire, 12 Awg, 56/0.3 Mm, 100m, Pvc Insulation (1 Reel of 100 Metres)
Technical Data Sheets
Specifications
Please select at least one specification below.
Length
100 m
Current Rating
41 A
Voltage Rating
1 kV
Specification Met
CSA C22.2 Type TEW, UK BS 6231, UL 1015
Sheath Colour
White
Insulation Material
PVC
American Wire Gauge
12 AWG
Minimum Operating Temperature
-15°C
Maximum Operating Temperature
+105°C
Outer Diameter
4.3 mm
Number of Strands
56
Size of Strands
0.3 mm
Conductor Material
Copper
Core Strands
56/0.3 mm
Cable Shape
Single Core
Insulation Wall Thickness
0.8 mm
Product Description
RM 707.82
| Units | Discount | Unit Price |
|---|---|---|
| 1 | - | RM 707.82 |
Quantity:
EA
