Rs Pro 7110719P 330 Microfarad Aluminium Electrolytic Capacitor 6.3V Dc, Radial, Through Hole

View Brand

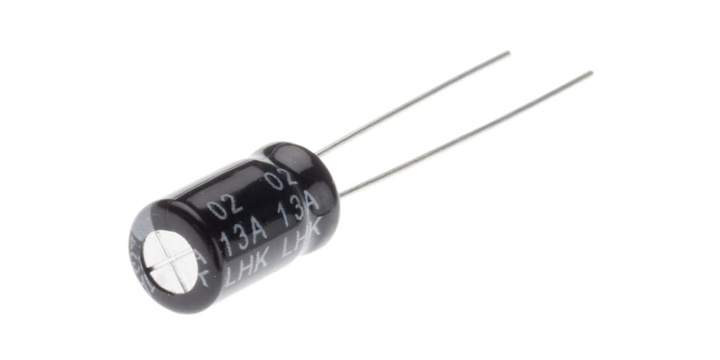

Rs Pro 7110719P 330 Microfarad Aluminium Electrolytic Capacitor 6.3V Dc, Radial, Through Hole

Brand:	RS Pro
Model:	7110719P

Technical Data Sheets

RS Pro Datasheet

Specifications

View other Aluminium Capacitors dimensions or variations

Voltage

6.3 VDC

Mounting Type

Radial, Through Hole

Dimensions

6.3 (Dia.) x 11 mm

Capacitance

330 µF

Lead Pitch

2.5 mm

Lifetime

1000h

Ripple Current

200 mA

Leakage Current

<=0.01 CV or 3 µA @ 1 min

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

+105°C

Dissipation Factor

23%

Tolerance

±20%

Product Description

RM 830.00

Quantity:

MOQ of 2500 EA

Bundle of 50 EA

This item is sold by

SG-4570630354
