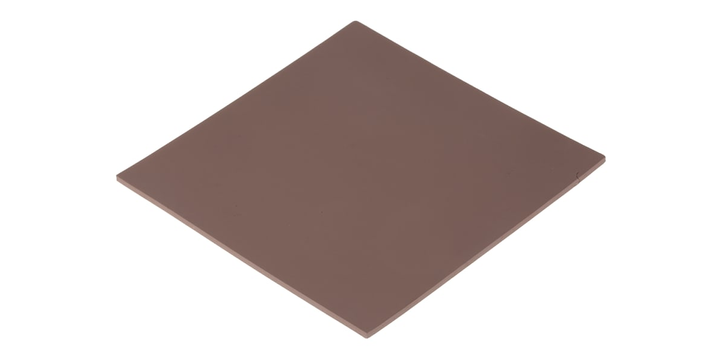

Rs Pro 7074617 Thermal Interface Sheet, 2.2W/m·K, 150 X 150mm 3mm, Self-Adhesive

View Brand

Rs Pro 7074617 Thermal Interface Sheet, 2.2W/m·K, 150 X 150mm 3mm, Self-Adhesive

Brand:	RS Pro
Model:	7074617

Technical Data Sheets

H48-2 Interface Material (EN - SDS)

RS Pro Datasheet

Specifications

View other Thermal Pads dimensions or variations

Colour

Red

Width

150 mm

Length

150 mm

Thickness

3 mm

Hardness

Shore A 10

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

+200°C

Thermal Conductivity

2.2 W/m·K

Self-Adhesive

Yes

Product Description

RM 217.76
