Rs Pro 6173031 80dB Panel Mount Continuous Internal Magnetic Buzzer Component, 20 X 23mm, 160V Ac Min, 260V Ac Max

View Brand

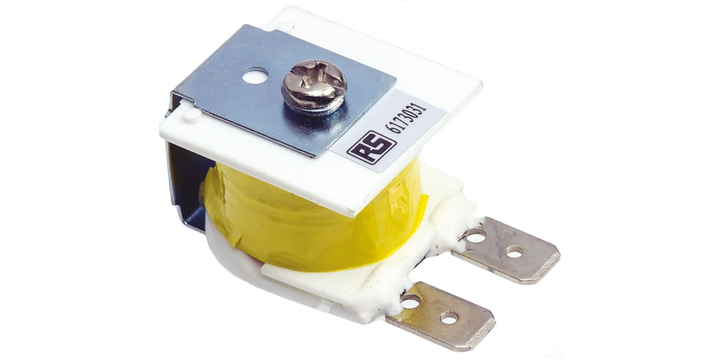

Rs Pro 6173031 80dB Panel Mount Continuous Internal Magnetic Buzzer Component, 20 X 23mm, 160V Ac Min, 260V Ac Max

Brand:	RS Pro
Model:	6173031

Technical Data Sheets

RS Pro Datasheet

Specifications

View other Piezo Buzzers dimensions or variations

Mounting Type

Panel Mount

Height

23 mm

Dimensions

20 x 23 mm

Drive Type

Internal

Minimum Operating Temperature

-20°C

Maximum Operating Temperature

+60°C

Minimum Supply Voltage

160V ac

Maximum Supply Voltage

260V ac

Sound Level

80 dB

Tone Type

Continuous

Maximum Frequency

7.15 kHz

Supply Current

30 mA

Minimum Frequency

5850 Hz

Product Description

RM 19.70

Units	Discount	Unit Price
1	-	RM 19.70
