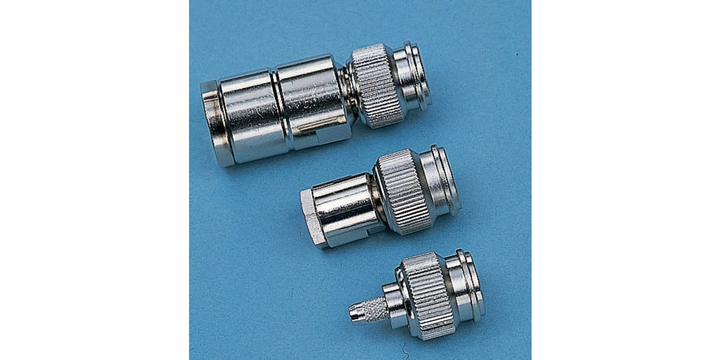

Rs Pro 2927941 50 Ohm Straight Cable Mount, Tnc Connector , Plug
Specifications
Please select at least one specification below.
Mounting Type
Cable Mount
Contact Material
Beryllium Copper
Gender
Male
Termination Method
Crimp
Body Orientation
Straight
Contact Plating
Gold over Nickel over Copper
Minimum Operating Temperature
-65°C
Maximum Operating Temperature
+165°C
Impedance
50 Ohm
Body Plating
Nickel over Copper
Coaxial Connector Type
TNC Connector
Cable Type
RG174/U, RG188 A/U, RG316/U
Operating Frequency
0 to 11 GHz
Size
30.3 x 16.2 mm
Product Description
RM 63.75
Quantity:
EA
