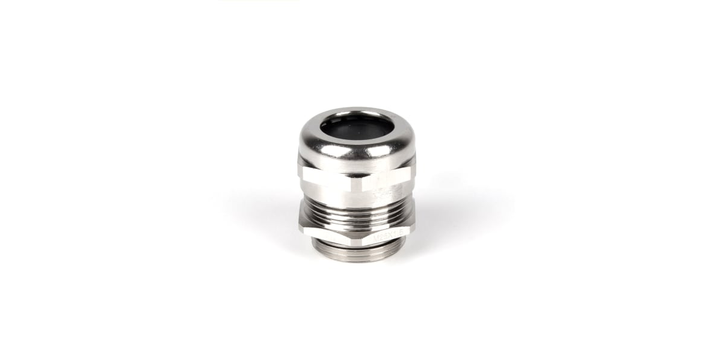

Rs Pro 2100621 Metallic Nickel Plated Brass Cable Gland, PG13.5 Thread, 6mm Min, 12mm Max, IP68 (1 Bag of 5)

View Brand

Rs Pro 2100621 Metallic Nickel Plated Brass Cable Gland, PG13.5 Thread, 6mm Min, 12mm Max, IP68 (1 Bag of 5)

Brand:	RS Pro
Model:	2100621

Technical Data Sheets

RS PRO Datasheet

Specifications

View other Cable Gland dimensions or variations

Colour

Metallic

Material

Nickel Plated Brass

Thread Size

PG13.5

IP Rating

IP68

Maximum Cable Diameter

12 mm

Minimum Cable Diameter

6 mm

Locknut Included

Yes

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

+100°C

Product Description

RM 73.86

Quantity:

This item is sold by

SG-4570630354

Shop by Specification Table

You can find items with similar specifications from the table below.

Cable Gland

23 Items

Colour

Grey, Metallic, Metallic - Nickel Finish, Black, White

Series

KSS PG THREAD (DIN STANDARD) (Strain Relief type), NSY, Lexium 32i, IMT3, ISM7

Material

Steel, Galvanised Steel, Polyethylene, Polyester, Brass

Thread Size

M20 x 1.5, M13 x 1.5, PG9, M16 x 1.5, PG13.5

Operating Temperature Range

-40 °C→+85 °C, -40 → +90 °C, -20 → +80 °C, -40 → +110 °C, -40 → +100 °C

Number of Pieces

10, 3, 4, 50, 5

Standards Met

RoHS Compliant, UL, RoHS Compliant, RoHS Compliant, UL 94 V-0, UL 94 V-2, RoHS Compliant, CE
