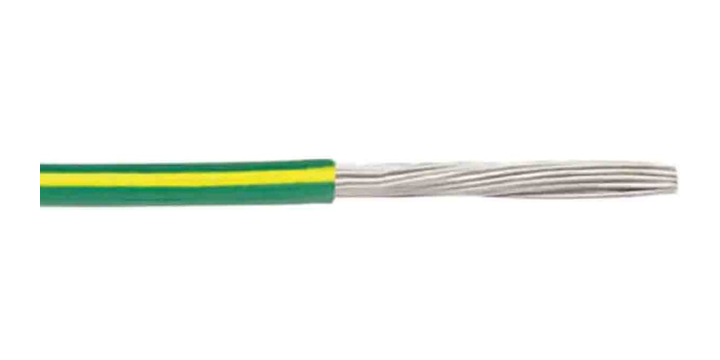

Rs Pro 2081052 Green/Yellow 2.1 Mm² Hook up Wire, 14 Awg, 1C, 305m, Pvc Insulation (1 Reel of 305 Metres)

Singapore

Search Keyword, Item or Model

Press

to jump to the search box

Shopping List

Cart

MYR - RM

Rs Pro 2081052 Green/Yellow 2.1 Mm² Hook up Wire, 14 Awg, 1C, 305m, Pvc Insulation (1 Reel of 305 Metres)

View Brand

Rs Pro 2081052 Green/Yellow 2.1 Mm² Hook up Wire, 14 Awg, 1C, 305m, Pvc Insulation (1 Reel of 305 Metres)

Brand:	RS Pro
Model:	2081052

Technical Data Sheets

Cable Selection Guide

RS PRO Datasheet

Specifications

View other Electrical Wire dimensions or variations

Length

305 m

Voltage Rating

600 V

Specification Met

RoHS Compliant

Sheath Colour

Green/Yellow

Insulation Material

PVC

American Wire Gauge

14 AWG

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

+105°C

Number of Strands

Conductor Material

Tinned Copper

Core Strands

1 C

Wire Style

UL1015

Insulation Wall Thickness

0.81 mm

Product Description

RM 654.07

Units	Discount	Unit Price
1	-	RM 654.07
