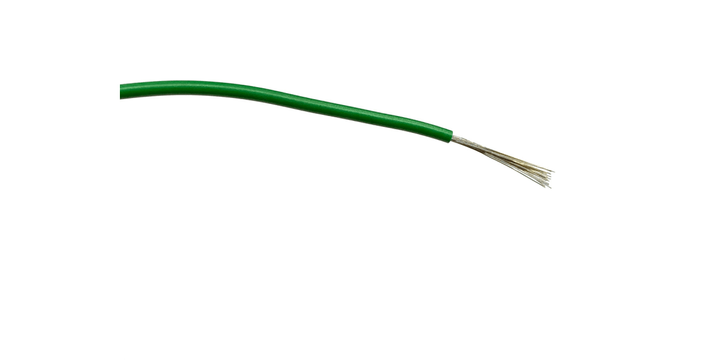

Rs Pro 1964313 Green 0.75 Mm² Hook up Wire, 18 Awg, 24/0.2 Mm, 100m, Pvc Insulation (1 Reel of 100)
Technical Data Sheets
Specifications
Please select at least one specification below.
Length
100 m
Current Rating
4.5 A
Voltage Rating
1.5 kV ac
Sheath Colour
Green
Insulation Material
PVC
American Wire Gauge
18 AWG
Minimum Operating Temperature
-20°C
Maximum Operating Temperature
+85°C
Outer Diameter
2.20 → 2.45 mm
Conductor Material
Annealed Tinned Copper
Core Strands
24/0.2 mm
Cable Type
Single Core
Cable Shape
Single Core
Wire Style
BS4808
Insulation Wall Thickness
0.6 mm
Product Description
RM 201.45
| Units | Discount | Unit Price |
|---|---|---|
| 1 | - | RM 201.45 |
Quantity:
EA
