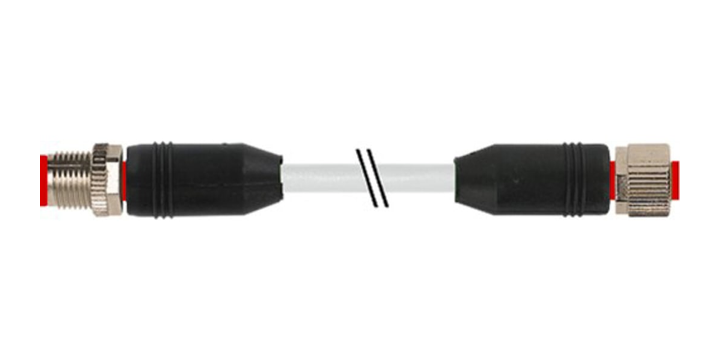

Rs Pro 1747884 Straight Female 8 Way M12 to Straight Male 8 Way M12 Sensor Actuator Cable, 2m
Specifications
Please select at least one specification below.
Current Rating
2 A
Operating Temperature Range
-25 → +85°C
Voltage Rating
30 V ac/dc
Sheath Colour
Grey
Length
2 m
IP Rating
IP65, IP66K, IP67
Connector Type 1
M12
Connector Type 2
M12
Connector 1 Orientation
Straight
Connector 2 Orientation
Straight
Shielded/Unshielded
Unshielded
Conductor Material
Copper
Insulation Material
PP
Sheath Material
PUR
This spec is not available in the specification table.
Connector 1 Gender
Female
This spec is not available in the specification table.
Connector 2 Gender
Male
This spec is not available in the specification table.
Connector 1 Housing Gender
Female
This spec is not available in the specification table.
Connector 2 Housing Gender
Male
This spec is not available in the specification table.
Number of Cores
8
This spec is not available in the specification table.
Minimum Bend Radius
10 x 15 mm
This spec is not available in the specification table.
American Wire Gauge
24 AWG
This spec is not available in the specification table.
Cable Shape
Round
This spec is not available in the specification table.
Specification Met
cLus Certified, CSA, cULus, DIN VDE 0298-4, EN 60529, IEC 60664-1, UL
This spec is not available in the specification table.
Product Description
RM 369.60
