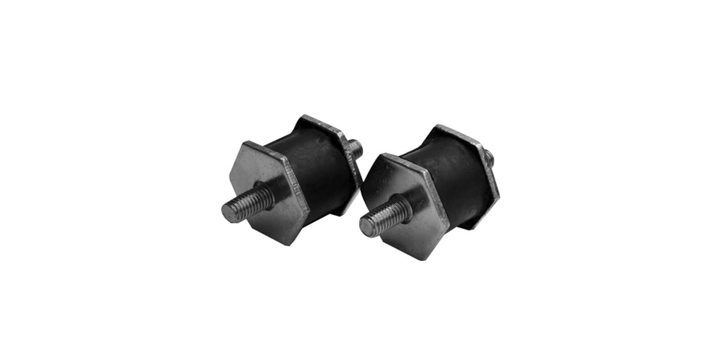

Rs Pro 1712654 Hexagonal M8 Anti Vibration Mount With 8kg Compression Load (1 Bag of 4)
Technical Data Sheets
Specifications
Please select at least one specification below.
Thread Size
M8
Diameter
20.7 mm
Overall Height
19 mm
Series
AH
Material
Natural Rubber
Maximum Operating Temperature
+100°C
Compression Load
8 kg
Metalwork
Zinc Plated Steel
Shore Hardness
45 Shore A
Compression Deflection
1.2 mm
Mounting Type
Screw-in
Foot Shape
Hexagonal
Static Load Capacity
8 kg
Foot Height
19 mm
Product Description
RM 73.11
Quantity:
EA
This item is sold by
SG-4570630354
