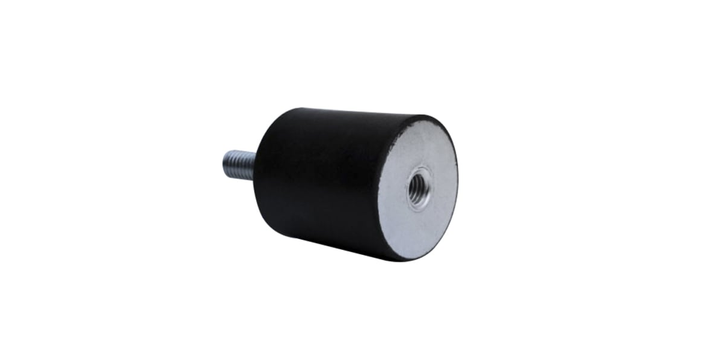

Rs Pro 1712594 M4 Anti Vibration Mount, Male to Female Bobbin With 13.2kg Compression Load (1 Bag of 4)
Rs Pro 1712594 M4 Anti Vibration Mount, Male to Female Bobbin With 13.2kg Compression Load (1 Bag of 4)
Brand:
RS Pro
Model:
1712594
Technical Data Sheets
Specifications
infotip-icon
View other Anti Vibration Mounts dimensions or variations
Please select at least one specification below.
Thread Size
M4
Diameter
15 mm
Overall Height
15 mm
Series
AV Type B
Material
Natural Rubber
Minimum Operating Temperature
-25°C
Maximum Operating Temperature
+70°C
Anti Vibration Mount Type
Male to Female Bobbin
Compression Load
13.2 kg
Metalwork
Stainless Steel
Shore Hardness
60 Shore A
Shearing Load
4 kg
Compression Deflection
1.5 mm
Product Description
