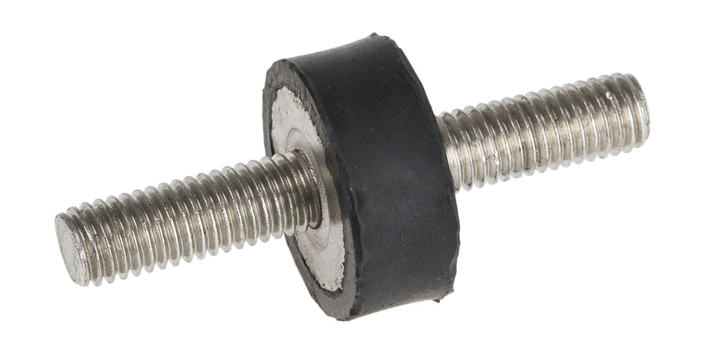

Rs Pro 1712572 M8 Anti Vibration Mount, Male to Male Bobbin With 66kg Compression Load (1 Bag of 4)
Technical Data Sheets
Specifications
Please select at least one specification below.
Thread Size
M8
Diameter
25 mm
Overall Height
10 mm
Series
AV Type A
Material
Natural Rubber
Minimum Operating Temperature
-25°C
Maximum Operating Temperature
+70°C
Anti Vibration Mount Type
Male to Male Bobbin
Compression Load
66 kg
Metalwork
Stainless Steel
Shore Hardness
60 Shore A
Shearing Load
13.2 kg
Compression Deflection
1 mm
Product Description
RM 114.81
