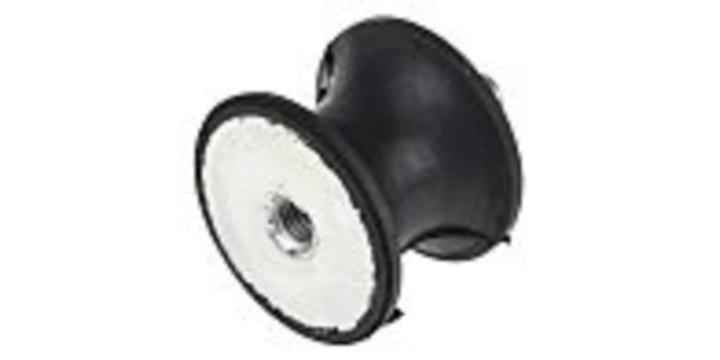

Rs Pro 1264333 m6 Anti Vibration Mount, Male to Female Bobbin With 20.68kg Compression Load (1 Bag of 2)
Technical Data Sheets
Specifications
Please select at least one specification below.
Thread Size
M6
Diameter
20 mm
Overall Height
20 mm
Series
AV Type B
Material
Natural Rubber
Minimum Operating Temperature
-25°C
Maximum Operating Temperature
+70°C
Anti Vibration Mount Type
Male to Female Bobbin
Compression Load
20.68 kg
Metalwork
Zinc Plated Steel
Shore Hardness
55 Shore A
Shearing Load
7.36 kg
Compression Deflection
2 mm
Product Description
RM 61.71
