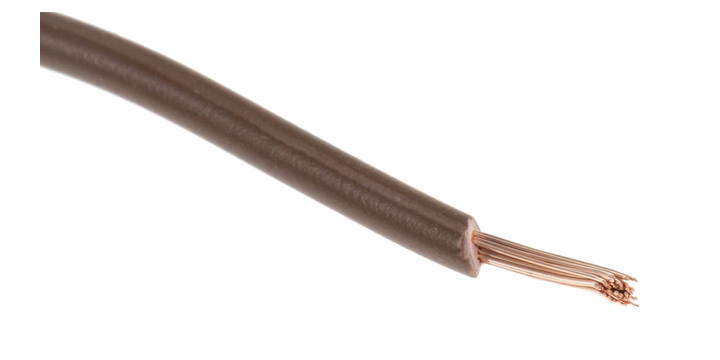

Rs Pro 0361737 Brown 1 Mm² Hook up Wire, 17 Awg, 32/0.2 Mm, 100m, Pvc Insulation (1 Reel of 100 Metres)
Technical Data Sheets
Specifications
Please select at least one specification below.
Length
100 m
Current Rating
10 A
Voltage Rating
500 V
Specification Met
BS 6004, BS EN 50525-2-31, RoHS Compliant
Sheath Colour
Brown
Insulation Material
PVC
American Wire Gauge
17 AWG
Minimum Operating Temperature
-15°C
Maximum Operating Temperature
+70°C
Outer Diameter
2.8 mm
Number of Strands
32
Size of Strands
0.2 mm
Conductor Material
Annealed Copper
Core Strands
32/0.2 mm
Cable Shape
Single Core
Insulation Wall Thickness
0.6 mm
Product Description
RM 284.73
| Units | Discount | Unit Price |
|---|---|---|
| 1 | - | RM 284.73 |
Quantity:
EA
