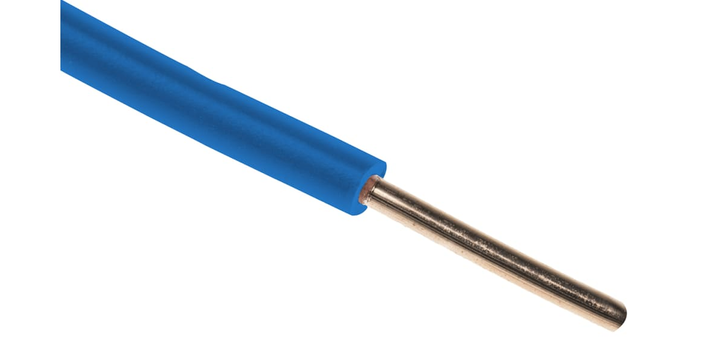

Rs Pro 0359037 Blue 2.5 Mm² Hook up Wire, 13 Awg, 1/1.78 Mm, 100m, Pvc Insulation (1 Reel of 100 Metres)
Rs Pro 0359037 Blue 2.5 Mm² Hook up Wire, 13 Awg, 1/1.78 Mm, 100m, Pvc Insulation (1 Reel of 100 Metres)
Brand:
RS Pro
Model:
359037
Specifications
infotip-icon
View other Electrical Wire  dimensions or variations
Please select at least one specification below.
Length
100 m
Current Rating
28 A
Voltage Rating
600 V
Specification Met
BS 6231
Sheath Colour
Blue
Insulation Material
PVC
American Wire Gauge
13 AWG
Maximum Operating Temperature
+70°C
Outer Diameter
3.9 mm
Number of Strands
1
Size of Strands
1.78 mm
Conductor Material
Annealed Copper
Core Strands
1/1.78 mm
Cable Type
Control
Cable Shape
Single Core
Insulation Wall Thickness
0.8 mm
Product Description
