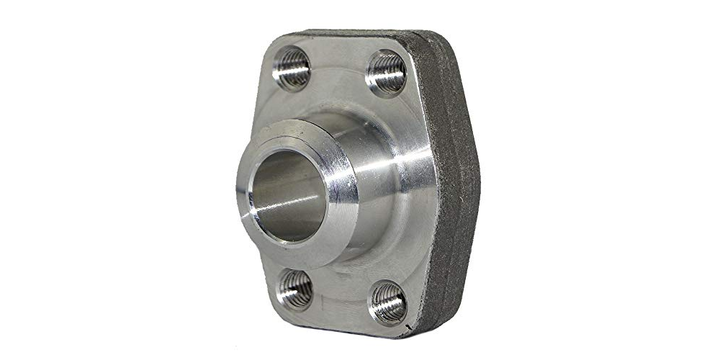

Oleo Tecnica Stainless Steel Sae Flange1 Butt Weld SCH40 Flat Side SAE-S-IT-BW-3-F-10-34-27
Oleo Tecnica Stainless Steel Sae Flange1 Butt Weld SCH40 Flat Side SAE-S-IT-BW-3-F-10-34-27
Brand: | Oleo Tecnica |
Model: | SAE-S-IT-BW-3-F-10-34-27 |
Technical Data Sheets
Specifications
Please select at least one specification below.
Types
4-Bolt Hydraulic Flange
Connection Style
Butt Weld
Flange Size
1"
Configuration
Flat Side
For Pipe Schedule
SCH40
Material
SS316 Stainless Steel
No. of Bolt Holes
4
Code
61
Series
3000
Working Pressure
34 - 345
bar
Standard
Sae J518
Screw Type
Socket Head Cap Screw
This spec is not available in the specification table.
Screw Size
M10
This spec is not available in the specification table.
Screw Length
35
mm
This spec is not available in the specification table.
Screw Torque (NM)
70
This spec is not available in the specification table.
Product Description
Oleo Tecnica Stainless Steel Sae Flange1 Butt Weld SCH40 Flat Side SAE-S-IT-BW-3-F-10-34-27
- Oleo Tecnica Stainless Steel 316 SAE Flange Code 61 3000 PSI, 1” Butt Weld SCH40 Flat Side, 4-bolt Flange w/ Metric Bolt Thread, SAE J518
- 1" B/W SCH40 SS316 SAE FLANGE 3000
- A34 B26.6 FLAT SIDE
RM 163.87
Quantity:
EA
