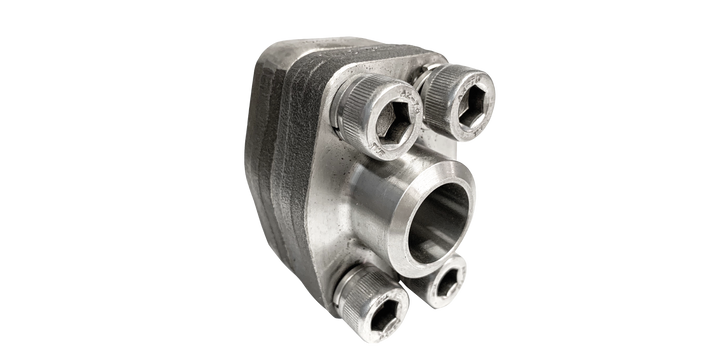

Oleo Tecnica ST52.3 Steel Sae Flange 4-bolt Flange w/ Nbr O-ring & Metric Cap Screws SAE-H-IT-BW-3-C-30-92-73
Oleo Tecnica ST52.3 Steel Sae Flange 4-bolt Flange w/ Nbr O-ring & Metric Cap Screws SAE-H-IT-BW-3-C-30-92-73
Brand: | Oleo Tecnica |
Model: | SAE-H-IT-BW-3-C-30-92-73 |
Technical Data Sheets
Specifications
Please select at least one specification below.
Types
4-Bolt Hydraulic Flange
Connection Style
Butt Weld
Flange Size
3"
Configuration
Complete Set
For Pipe Schedule
SCH80
Material
ST52.3 Carbon Steel
No. of Bolt Holes
4
Code
61
Series
3000
Working Pressure
34 - 345
bar
Standard
Sae J518
Sold with
Screw, O-Ring, and Washer
This spec is not available in the specification table.
Screw Type
Socket Head Cap Screw
This spec is not available in the specification table.
Screw Size
M16
This spec is not available in the specification table.
Screw Length
50
mm
This spec is not available in the specification table.
Screw Torque (NM)
295
This spec is not available in the specification table.
O-ring material
NBR
This spec is not available in the specification table.
Product Description
Oleo Tecnica ST52.3 Steel Sae Flange Code 61 3000 Psi, 3 Butt Weld SCH80 Complete Set, 4-bolt Flange w/ Nbr O-ring & Metric Cap Screws, Sae J518
ST52.3 Steel Sae Flange Code 61 3000 Psi, 3 Butt Weld SCH80 Complete Set, 4-bolt Flange w/ Nbr O-ring & Metric Cap Screws, Sae J518
About this item
- SAE Code 61 with optimum working pressure of 3000 PSI
- Body made via normalized forgings which is strong and durable
- Made of ST52.3 steel material
- Consists of male flange, female flange, NBR O-ring seal, socket cap screws and spring washers
- Butt weld (weld-on) connection for pipes of various size and thickness
Technical Spec
- Netto Weight 5.500 KG
- Height Dimension 13.400
- Length Dimension 10.000
- Width Dimension 12.400
- Dimension uom 10.000
RM 198.00
