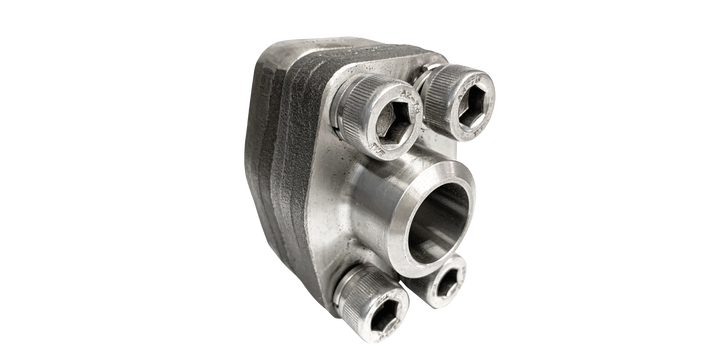

Oleo Tecnica Carbon Steel 4-bolt Flange w/ Nbr O-ring & Metric Cap Screws SAE-H-IT-BW-6-C-20-61-42
Oleo Tecnica Carbon Steel 4-bolt Flange w/ Nbr O-ring & Metric Cap Screws SAE-H-IT-BW-6-C-20-61-42
Brand: | Oleo Tecnica |
Model: | SAE-H-IT-BW-6-C-20-61-42 |
Technical Data Sheets
Specifications
Please select at least one specification below.
Types
4-Bolt Hydraulic Flange
Connection Style
Butt Weld
Flange Size
2"
Configuration
Complete Set
For Pipe Schedule
SCH160
Material
ST52.3 Carbon Steel
No. of Bolt Holes
4
Code
62
Series
6000
Working Pressure
200 - 414
bar
Standard
Sae J518
Sold with
Screw, O-Ring, and Washer
This spec is not available in the specification table.
Screw Type
Socket Head Cap Screw
This spec is not available in the specification table.
Screw Size
M20
This spec is not available in the specification table.
Screw Length
70
mm
This spec is not available in the specification table.
Screw Torque (NM)
550
This spec is not available in the specification table.
O-ring material
NBR
This spec is not available in the specification table.
Product Description
Oleo Tecnica Carbon Steel, 4-bolt Flange w/ Nbr O-ring & Metric Cap Screws, Sae J518
Oleo Tecnica Carbon Steel ST52.3 Sae Flange Code 62 6000 Psi, 2 Butt Weld SCH160 Complete Set, 4-bolt Flange w/ Nbr O-ring & Metric Cap Screws, Sae J518
Technical Spec
- Netto Weight 7.5 KG
- Unit Dimension 13 X 11.4 X 13.4 CM
- Height Dimension 13.400
- Length Dimension 13.000
- Width Dimension 11.400
- Dimension uom 13.000
RM 270.38
Quantity:
EA
