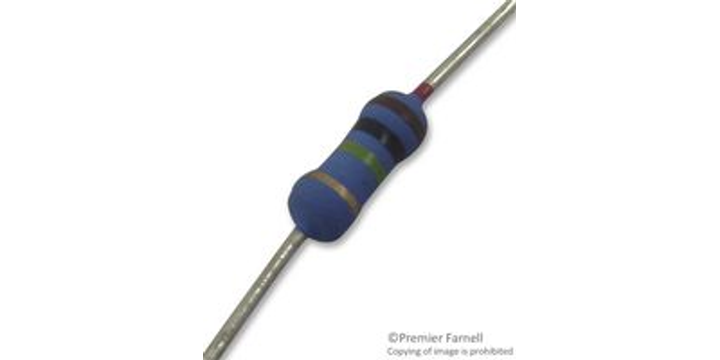

Multicomp Pro MCPMR01TJ0104A50 Res, 100K, 5%, 1W, Axial, Metal Film
Multicomp Pro MCPMR01TJ0104A50 Res, 100K, 5%, 1W, Axial, Metal Film
Brand: | MULTICOMP PRO |
Model: | MCPMR01TJ0104A50 |
Technical Data Sheets
Specifications
Please select at least one specification below.
Power Rating
1 W
Product Range
MCPMR
Temperature Coefficient
± 350 ppm/°C
Resistance Tolerance
± 5%
Voltage Rating
350 V
Operating Temperature Max
155 °C
Operating Temperature Min
-55 °C
Resistor Type
General Purpose
Product Length
6.5 mm
Resistance
100 Kohm
Product Diameter
2.5 mm
RohsCompliant
YES
This spec is not available in the specification table.
Resistor Case / Package
Axial Leaded
This spec is not available in the specification table.
Resistor Technology
Metal Film
This spec is not available in the specification table.
Product Description
RM 3.50
Lead time of 5 working days required.
Item will be ready to dispatch within the lead time specified.
Quantity:
EA
MOQ of 10 EA
Bundle of 10 EA
