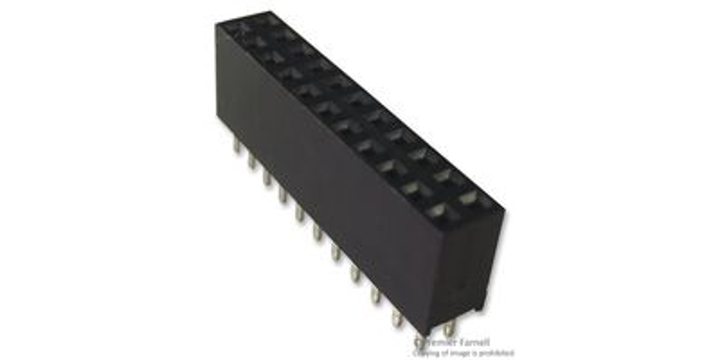

Multicomp Pro 2200SB-20G-A1 Socket, Pcb, 2 Row, Vert, 20WAY
Brand: | MULTICOMP PRO |
Model: | 2200SB-20G-A1 |
Technical Data Sheets
Specifications
Please select at least one specification below.
Current Rating
1A
Contact Material
Phosphor Bronze
Gender
Plug
Contact Plating
Gold Plated Contacts
Contact Resistance
20 Mohm
Operating Temperature Min
-25°C
Operating Temperature Max
105°C
Pitch Spacing
1.27 mm
RohsCompliant
YES
This spec is not available in the specification table.
No. of Contacts
20 Contacts
This spec is not available in the specification table.
Contact Termination Type
Through Hole
This spec is not available in the specification table.
No. of Rows
2 Rows
This spec is not available in the specification table.
Insulation Resistance
1000 Mohm
This spec is not available in the specification table.
Withstand Voltage
500 V
This spec is not available in the specification table.
Voltage Rating VAC
50 V
This spec is not available in the specification table.
Product Description
RM 26.02
Lead time of 5 working days required.
Item will be ready to dispatch within the lead time specified.
Quantity:
EA
MOQ of 5 EA
Bundle of 5 EA
