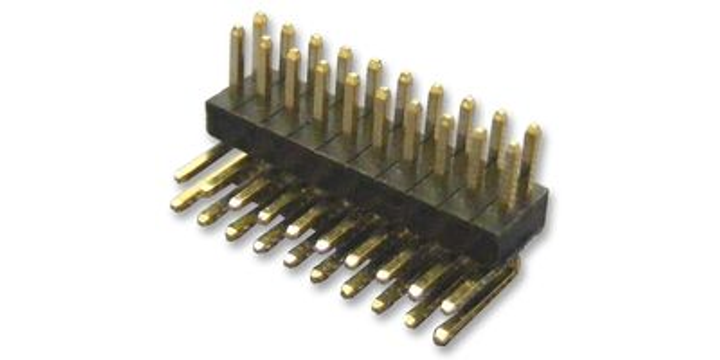

Multicomp Pro 2199R5-20G-301523 Header, 2 Row, R/ANGLE, 20WAY
Multicomp Pro 2199R5-20G-301523 Header, 2 Row, R/ANGLE, 20WAY
Brand: | MULTICOMP PRO |
Model: | 2199R5-20G-301523 |
Technical Data Sheets
Specifications
Please select at least one specification below.
Contact Material
Copper Alloy
Contact Plating
Gold Plated Contacts
Contact Termination Type
Through Hole
Operating Temperature Min
-25°C
Operating Temperature Max
105°C
No. of Rows
2 Rows
Pitch Spacing
1.27 mm
Insulation Resistance
1000 Mohm
Current Rating
1A
This spec is not available in the specification table.
Contact Resistance
20 mohm
This spec is not available in the specification table.
No. of Contacts
20 Contacts
This spec is not available in the specification table.
Withstand Voltage
500 V
This spec is not available in the specification table.
Voltage Rating
50 V
This spec is not available in the specification table.
Product Description
RM 27.09
Lead time of 5 working days required.
Item will be ready to dispatch within the lead time specified.
Quantity:
EA
MOQ of 5 EA
Bundle of 5 EA
