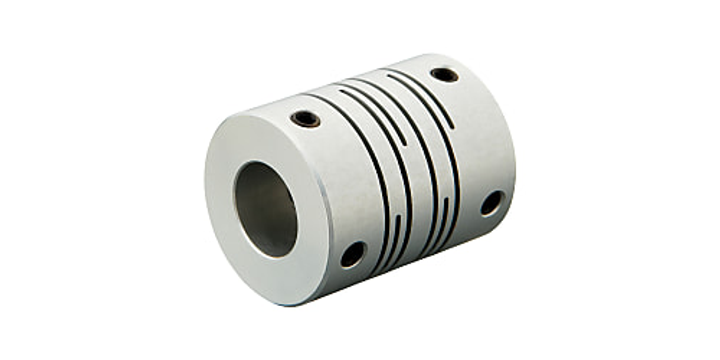

Misumi GSASL32-12-14 Slit Couplings Long, Set Screw Type
Misumi GSASL32-12-14 Slit Couplings Long, Set Screw Type
Brand: | MISUMI |
Model: | GSASL32-12-14 |
Specifications
Please select at least one specification below.
Length
41 mm
Body Material
Aluminum Alloy
Shaft Bore Diameter 1
12 mm
Shaft Bore Diameter 2
14 mm
Outer Diameter
32 mm
Allowable Torque Range
3.01 - 5.00 Nm
Shaft Tightening Method
Set Screw
Shaft Bore Shape
Standard Bore
Allowable Lateral Misalignment [mm]
0
mm
This spec is not available in the specification table.
Allowable Lateral Misalignment Range [mm]
0.02 - 0.2
mm
This spec is not available in the specification table.
Allowable Angular Misalignment [deg]
2
deg
This spec is not available in the specification table.
Max. Rotational Speed [r/min]
10000
This spec is not available in the specification table.
Series Name
Slit
This spec is not available in the specification table.
Allowable Misalignment
Angular Misalignment / Eccentricity / Axial Misalignment
This spec is not available in the specification table.
Max. Rotational Speed Range
4001 - 10000 r/min
This spec is not available in the specification table.
Allowable Axial Misalignment
1
mm
This spec is not available in the specification table.
Product Description
RM 90.74
Quantity:
EA
Stock:
20 EA in stock
