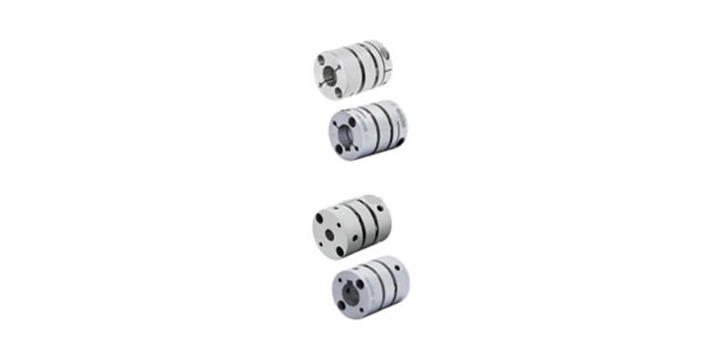

Misumi GCPW20-5-5 Disc Couplings High Flexible, Double Disc
Misumi GCPW20-5-5 Disc Couplings High Flexible, Double Disc
Brand: | MISUMI |
Model: | GCPW20-5-5 |
Specifications
Please select at least one specification below.
Length
28.8 mm
Body Material
Aluminum Alloy
Shaft Bore Diameter 1
5 mm
Shaft Bore Diameter 2
5 mm
Outer Diameter
20 mm
Allowable Torque Range
0.05 - 1.00 Nm
Shaft Tightening Method
Fastening Bolt
Shaft Bore Shape
Standard Bore
Single/Double
Double
Allowable Lateral Misalignment [mm]
0
mm
This spec is not available in the specification table.
Allowable Lateral Misalignment Range [mm]
0.02 - 0.2
mm
This spec is not available in the specification table.
Allowable Angular Misalignment [deg]
2
deg
This spec is not available in the specification table.
Max. Rotational Speed [r/min]
10000
This spec is not available in the specification table.
Series Name
Disc
This spec is not available in the specification table.
Allowable Misalignment
Angular Misalignment / Eccentricity / Axial Misalignment
This spec is not available in the specification table.
Max. Rotational Speed Range
4001 - 10000 r/min
This spec is not available in the specification table.
Allowable Axial Misalignment
0
mm
This spec is not available in the specification table.
Product Description
RM 89.66
Quantity:
EA
Stock:
19 EA in stock
In Seller's Warehouse
This item is sold by
SG-4887073424
