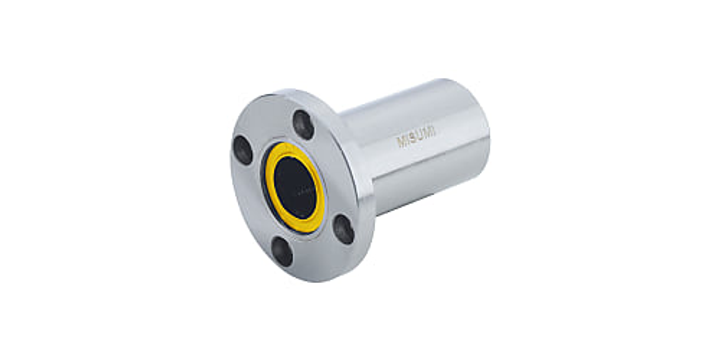

Misumi E-LBF16DMUU Round Flanged Linear Bushings, Medium
Misumi E-LBF16DMUU Round Flanged Linear Bushings, Medium
Brand: | MISUMI |
Model: | E-LBF16DMUU |
Specifications
Please select at least one specification below.
Type
Flange
Accuracy
High Grade
Ball Material
SUJ2 Equivalent
Outer Diameter
28
mm
Overall Length
56
mm
Inscribed Circle Diameter
16
mm
Ball Recirculating Type
Double
Eccentricity
0.018 µm
Flange Shape
Square Flange
Basic Load Rating: Static Load
1448 N
Motion
Linear
Basic Load Rating: Dynamic Load
1164 N
Product Description
RM 36.67
Quantity:
EA
Stock:
50 EA in stock
