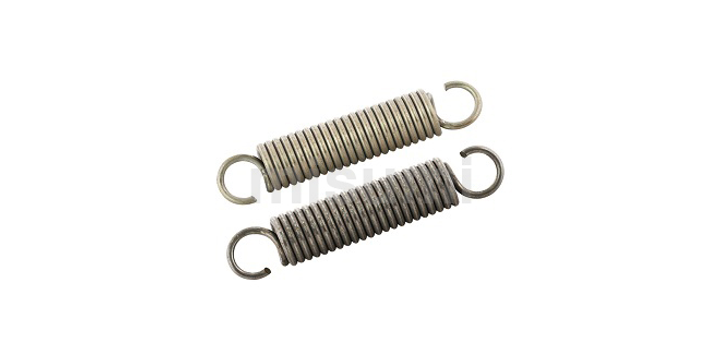

Misumi C-AWY6-45 Tension Springs Ultra Light Load / Light Load O.D.3-8
Specifications
Please select at least one specification below.
Material
SWP-A
Outer Diameter
6
mm
Allowable Load (Configurable Range)
8.01~15.00 N
Max. Load
8.14 N
Wire Diameter
0.6
mm
Free Length
45
mm
Length of Spring Used L+F
95
mm
Initial Tension
1.27 N
Standard Spring Constant
0.14 N/mm
Max. Deflection
50.0 mm
Hook Opposing Angle
180° (Standard)
Product Description
RM 1.36
Quantity:
EA
Stock:
100 EA in stock
In Seller's Warehouse
This item is sold by
SG-4887073424
