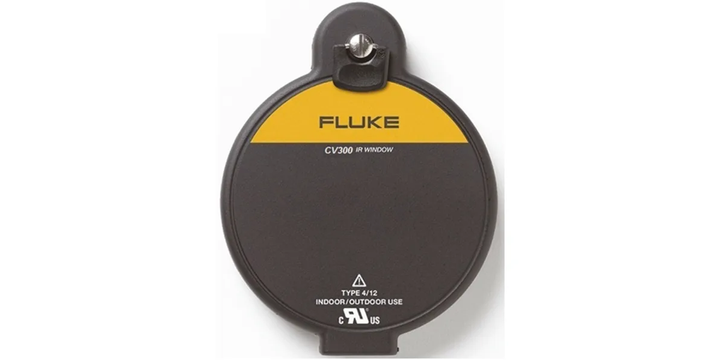

Fluke FLUKE-CV300 Ir Inspection Window, 75mm, Hand Turn

Features & Benefits

• Safety: Increases safety by reducing the risk of arc-flash and electrocution

• Efficiency: Speeds up electrical thermal imaging inspections

• Time & Cost Savings: Reduces the time and cost of preventive maintenance


Installation:

• Quick and easy installation in just 5 minutes with one technician

• Only one hole required using a standard Greenlee® punch (rear access needed for punch connection only)

• Installs from the front, no template needed, and no rear access required


Grounding & Protection:

• Grounds instantly to metal enclosures with patent-pending AutoGround™ process

• Sharp teeth on jam nuts assure four gas-tight ground connections

• All components feature electrically conductive finishes for optimum grounding

• Superior arc blast protection for enhanced safety


Durability & Materials:

• High-temperature silicon gaskets for reliable sealing

• Mounting and door latches provide high-pressure gasket compression

• Die-cast components made from the highest strength alloys

• Jam nut screws made from 4037 steel, heat treated to 160,000 psi tensile strength

• IP67 protection for dust and water resistance


Environmental Resistance:

• Corrosion and UV resistance, suitable for challenging outdoor environments


Size & Access Options:

• Available in three sizes: 50 mm, 75 mm, and 95 mm

• Options for hand turn or security key door latches


Compliance & Safety:

• Work permit requirements and NFPA 70E processes significantly reduced

• Full PPE is often not required, making inspections faster and easier
