Features and Benefits:
• 50,000 Count, 320 x 240 dot-matrix LCD display with white backlight, allowing clear multiple on-screen display of measurement information
• 0.025% basic DC accuracy
• Logging function with TrendCapture plots measurements as single line to help detect anomalies (TrendCapture allows graphically view of logged readings without a PC)
• F1 → F4 soft keys provide flexible user function menus
• Navigation keys allow quick selection of menu options and scroll through information screens
• Saved measurements allow operator to name and recall measurements made in the field
• Upgradeable field and expandable meter as new capabilities are added
• Record events and trends for troubleshooting intermittent problems or profiling loads
• i-info button on-board helps screen for measurement functions
• Internal memory allows standalone logging for up to 180 hours
• Preferred measurement settings can be easily saved
• True-RMS AC voltage and current for accurate measurement of complex signals or non-linear loads. AC bandwidth specified to 100 kHz
• DBV / dBm measurement
• 1 μV resolution in DC mV range
• Current measurement 20 A (30 seconds momentary, 10 A continuous)
• Peak capture function to record transients as fast as 250 μs
• Continuity / Conductance / Capacitance
• Resistance and continuity
• Duty cycle & pulse width measurement
• Min / Max / Average with Time Stamp to record signal fluctuations
• Real time and elapsed time modes
• CAT III 1000 V / CAT IV 600 V safety rated

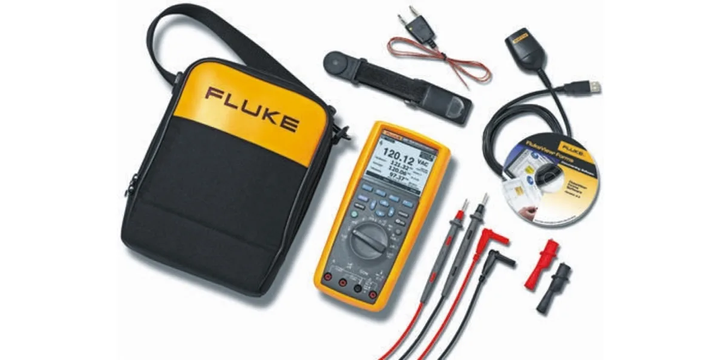

Fluke Combo Kit includes:
• Fluke 289
• FlukeView forms software and cable
• 80BK thermocouple
• TL 71 Silicone test lead set
• AC72 Alligator clips
• TPAK Magnetic meter hanger for hands-free operation
• Soft case for meter protection and accessory storage
Note
For details of the Fluke 289 True RMS logging multimeter see stock no. 156-730
FLUKE Multimeter Kit, 180 Hours Logging Memory, 50nS Conductance - FLUKE 289/FVF
Get an accurate measure of the electrical properties of your appliances with this multimeter kit from FLUKE. The set includes a data logger, test leads and probes to assess characteristics including voltage, current, resistance and temperature. You get everything you need to make diagnostics and troubleshooting easy and time-efficient. The large LED display on the logger gives a clear view of values and there's a backlight for working in dark spots. For safe storage and impact protection, the instruments in this set come zipped up in a soft case.
• Wide operating temperature range between -20°C and +55°C for use in demanding conditions
• Integrated continuity beeper ensures a clear audio signal on voltage detection
• Logging memory of up to 10,000 readings for long-term data storage
• Built-in TrendCapture produces graphical displays for easy reading
• Logger is wireless-compatible for easy data exchange with computers
Applications
• Electrical workshops
• Machine building
• Oil and gas plants
Units | Discount | Unit Price |
---|---|---|
1 | - | RM 6,337.97 |
