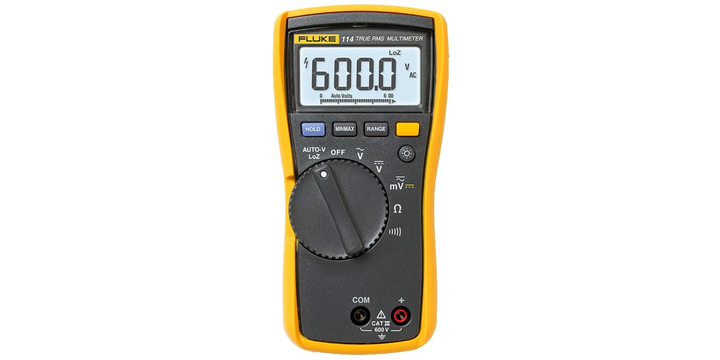

Fluke 114 EUR Handheld Digital Multimeter 600V Ac 600V Dc

• The compact Fluke 114 Multimeter Type Handheld
• Absolute Maximum DC Voltage Measurement 600V dc
• Absolute Maximum Resistance Measurement 40MΩ
• Absolute Maximum AC Voltage Measurement 600V ac
• Functions Measured AC Voltage, Continuity, DC Voltage, Resistance
• True RMS Yes
• Maximum Frequency 1kHz
• Display Type LCD
• Model Number p 114
• AC Voltage Measurement Resolution 0.1mV ac
• Resistance Measurement Resolution 100mΩ
• DC Voltage Measurement Resolution 0.1mV dc
• Best Resistance Measurement Accuracy ±1.5% + 2 Digits
• Minimum Operating Temperature -10°C
• Best DC Voltage Accuracy ±0.5% + 2 Digits
• Length 46mm
• Safety Category Level CAT III
• Safety Category Voltage 600V
• Dimensions 46 x 84 x 167mm
• Maximum Operating Temperature +50°C
• Best AC Voltage Accuracy ±1% + 3 Digits
• Height 167mm
• Weight 550g
• Battery Life 400 h
• Width 84mm
• Battery Type 9V

multimeter is a CAT III 600 V safety rated True RMS meter for electrical troubleshooting, giving you results without the complications. It is designed for easy one-hand operation and go/no go testing for use by professional electricians in both commercial and residential applications. Its AutoVolt capability automatically switches to measure AC or DC voltage, whichever is present. The LoZ function helps identify so-called ghost voltage and prevents false readings and improve accuracy when testing on irregular waveforms. The Fluke 114 displays True RMS voltage and current readings with 6000-count resolution, and tests continuity and resistance. A large white LED backlight aids work in poorly lit areas. An easy-open battery access door makes battery changes easy.

What are the key benefits of the Fluke 114 Digital Multimeter?

• True RMS digital multimeter, ideal for electrician and tradesmen
• It has a 6000 count resolution
• LCD display with a large white LED backlight and analogue bargraph
• An integrated tilt stand with a removable holster
• Min/Max/Average records signal fluctuations over a period of time
• Prompts when battery levels are low
• Resistance and continuity testing capability with a beeper integrated sound
• CAT III 600 V safety rated
• AutoVolt feature that detects AC or DC voltage

Additional Specifications

• DC Voltage Accuracy: 0.5% + 2
• DC Voltage Lowest Resolution: 0.1mV
• AC Voltage Accuracy: 2.0% + 3
• AC Voltage Lowest Resolution: 0.1mV
• AC Voltage Max Frequency: 1kHz
• Display Count 6000
• Display Update 4/sec
• Bar Graph Segments 33
• Bar Graph Update 32/sec
