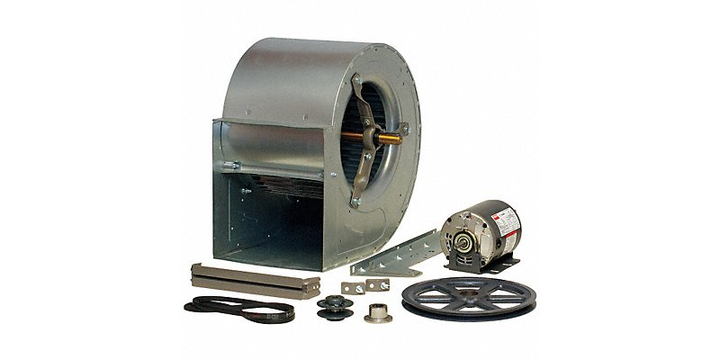

Dayton 7J423 Blower w/ Dr Pkg 10-1/4 in 208-230/460V
Specifications
Please select at least one specification below.
Motor Enclosure Design
Totally Enclosed Fan-Cooled (TEFC)
Inlet Diameter
7-1/2 in
This spec is not available in the specification table.
Motor Horsepower
1-1/2 hp
This spec is not available in the specification table.
Standards
CSA Certified, UL Listed
This spec is not available in the specification table.
Outlet Width
11-13/16 in
This spec is not available in the specification table.
Wheel Material
Steel
This spec is not available in the specification table.
Maximum Static Pressure
1-1/4 in wc
This spec is not available in the specification table.
Wheel Diameter
10-1/4 in
This spec is not available in the specification table.
Outlet Height
6-5/16 in
This spec is not available in the specification table.
Wheel Type
Forward-Curved
This spec is not available in the specification table.
Maximum Inlet Air Temperature
150 Degrees F
This spec is not available in the specification table.
Drive Type
Belt Drive
This spec is not available in the specification table.
Product Description
RM 4,936.53
| Units | Discount | Unit Price |
|---|---|---|
| 1 | - | RM 4,936.53 |
Quantity:
EA
Lead time of 6 working days required.
Item will be ready to dispatch within the lead time specified.
This item is sold by
SG-4667031604
