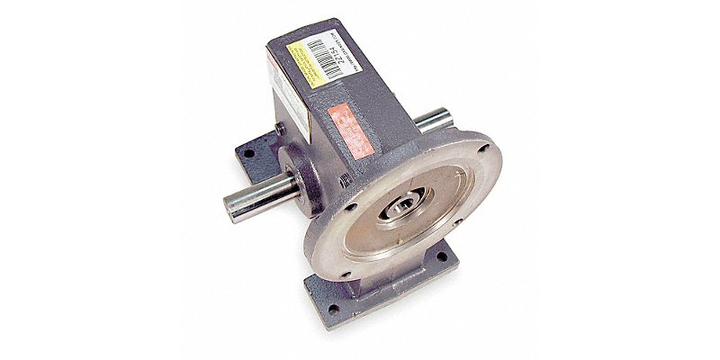

Dayton 2Z154 Speed Reducer C-Face 56C 12.5 1

DAYTON

View Brand

Dayton 2Z154 Speed Reducer C-Face 56C 12.5 1

Brand:	DAYTON
Model:	2Z154

Specifications

View other Gearboxes dimensions or variations

Worm Center Distance

2.62 in

Output Shaft Type

Round

Input Drive Type

Direct Drive

Gear Ratio

12.5:1

Overhung Load Capacity

487 ft-lb

Maximum Output Torque

292 in-lb

Gear Type

Worm

Maximum Input Horsepower

0.75 hp

Motor Frame Designation

56C

Nameplate Speed Range

101 to 150 RPM

Product Description

RM 4,130.46

Units	Discount	Unit Price
1	-	RM 4,130.46

Quantity:

Lead time of 12 working days required.

Item will be ready to dispatch within the lead time specified.
