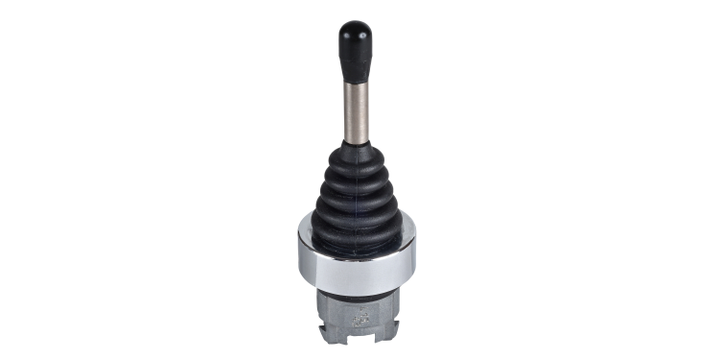

Schneider Electric ZD4PA24 Head for Joystick Controller, Harmony XB4, Plastic, 22mm, 4 Directions, Spring Return
Schneider Electric ZD4PA24 Head for Joystick Controller, Harmony XB4, Plastic, 22mm, 4 Directions, Spring Return
Technical Data Sheets
Specifications
infotip-icon
View other Push Button Heads dimensions or variations
Please select at least one specification below.
Range of Product
Harmony XB4
Standard
EN/IEC 60947-5-5 EN/IEC 60947-1 UL 508 JIS C8201-5-1 EN/IEC 60947-5-1 CSA C22.2 No 14 EN/IEC 60947-5-4 JIS C8201-1
IP Degree of Protection
IP66 conforming to IEC 60529
Ambient Air Temperature for Operation
-25…70 °C
Mechanical Durability
1000000 cycles
Vibration Resistance
5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
Mounting Diameter
22 mm
Shape of Signaling Unit Head
Round
Bezel Material
Chromium plated metal
Device Short Name
ZB4
This spec is not available in the specification table.
Product or Component Type
Head for joystick controller
This spec is not available in the specification table.
Ambient Air Temperature for Storage
-40…70 °C
This spec is not available in the specification table.
Device Presentation
Basic element
This spec is not available in the specification table.
Certifications
CSA LROS (Lloyds register of shipping) GL BV UL listed DNV
This spec is not available in the specification table.
IK Degree of Protection
IK03 conforming to IEC 50102
This spec is not available in the specification table.
Shock Resistance
30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27
This spec is not available in the specification table.
Electrical Shock Protection Class
Class I conforming to IEC 60536
This spec is not available in the specification table.
Resistance to High Pressure Washer
7000000 Pa at 55 °C, distance : 0.1 m
This spec is not available in the specification table.
Protective Treatment
TH
This spec is not available in the specification table.
NEMA degree of Protection
NEMA 13 NEMA 4X
This spec is not available in the specification table.
Type of Operator
To zero position spring return
This spec is not available in the specification table.
Operator Profile
54 mm long operating shaft
This spec is not available in the specification table.
Operator Position Information
5 positions
This spec is not available in the specification table.
Operator Direction Information
4 directions
This spec is not available in the specification table.
