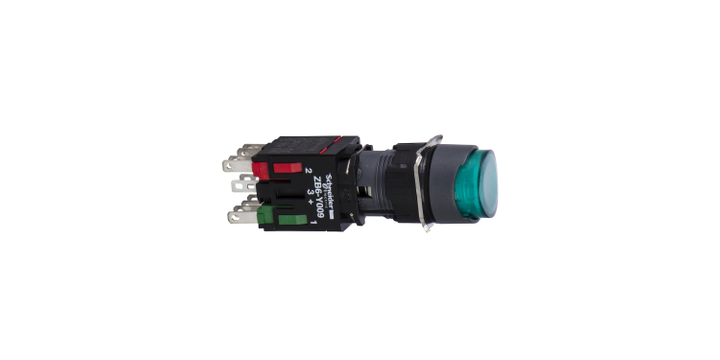

Schneider Electric XB6AE3B5B Complete Illuminated Push Button, Harmony XB6, Green Projecting, 16mm, Spring Return, 1NO + 1NC, 12...24V
Schneider Electric XB6AE3B5B Complete Illuminated Push Button, Harmony XB6, Green Projecting, 16mm, Spring Return, 1NO + 1NC, 12...24V
Brand: | SCHNEIDER ELECTRIC |
Model: | XB6AE3B5B |
Specifications
Please select at least one specification below.
Range Of Product
Harmony XB6
Standards
CSA C22.2 No 14
JIS C 852
EN/IEC 60947-5-1
JIS C 4520
EN/IEC 60947-5-5
EN/IEC 60947-1
[Ui] Rated Insulation Voltage
250 V (pollution degree 3) conforming to EN/IEC 60947-1
[Uimp] Rated Impulse Withstand Voltage
4 kV conforming to EN/IEC 60947-1
Connections - Terminals
Faston connectors, connection size: 2.8 x 0.5 mm
Ip Degree Of Protection
IP65 conforming to IEC 60529
Product Certifications
CCC
GOST
UL
CSA
Mounting Diameter
16 mm
Shape Of Signaling Unit Head
Round
Terminals Description Iso N°1
(21-22)NC
(13-14)NO
Device Short Name
XB6
This spec is not available in the specification table.
Product Or Component Type
Complete illuminated push-button
This spec is not available in the specification table.
Ambient Air Temperature For Operation
-25…70 °C
This spec is not available in the specification table.
Ambient Air Temperature For Storage
-40…70 °C
This spec is not available in the specification table.
Electrical Durability
1000000 cycles, AC-15 at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C
1000000 cycles, DC-13 at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C
This spec is not available in the specification table.
Contacts Material
Silver alloy (Ag/Ni)
This spec is not available in the specification table.
[Ie] Rated Operational Current
3 A at 120 V, AC-15, B300 conforming to EN/IEC 60947-5-1
1.5 A at 240 V, AC-15, B300 conforming to EN/IEC 60947-5-1
0.1 A at 250 V, DC-13, R300 conforming to EN/IEC 60947-5-1
0.22 A at 125 V, DC-13, R300 conforming to EN/IEC 60947-5-1
This spec is not available in the specification table.
Contacts Type And Composition
1 NO + 1 NC
This spec is not available in the specification table.
Shock Resistance
30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27
This spec is not available in the specification table.
Vibration Resistance
+/- 3 mm (f= 2…500 Hz) conforming to IEC 60068-2-6
5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
This spec is not available in the specification table.
Electrical Shock Protection Class
Class II conforming to IEC 61140
This spec is not available in the specification table.
Protective Treatment
TC
This spec is not available in the specification table.
Nema Degree Of Protection
NEMA 13 conforming to UL 50
NEMA 4 conforming to UL 50
NEMA 4X conforming to UL 50
NEMA 13 conforming to CSA C22.2 No 94
NEMA 4 conforming to CSA C22.2 No 94
NEMA 4X conforming to CSA C22.2 No 94
This spec is not available in the specification table.
Type Of Operator
spring return
This spec is not available in the specification table.
Operator Profile
Green projecting, unmarked
This spec is not available in the specification table.
Contact Operation
Slow-break
This spec is not available in the specification table.
Positive Opening
With conforming to EN/IEC 60947-5-1 appendix K
This spec is not available in the specification table.
Short-Circuit Protection
6 A cartridge fuse type gG
This spec is not available in the specification table.
Electrical Reliability
Λ = 10exp(-8) at 5 V and 1 mA with confidence level of 90 % conforming to IEC 60947-5-4
This spec is not available in the specification table.
Bezel Material
Plastic
This spec is not available in the specification table.
Operating Travel
1 mm (NO changing electrical state)
2 mm (NC changing electrical state)
3.5 mm (total travel)
This spec is not available in the specification table.
Operating Force
3.5 N NO changing electrical state
4.5 N NC changing electrical state
This spec is not available in the specification table.
Operating Position
Any position
This spec is not available in the specification table.
Resistance To Electrostatic Discharge
6 kV on contact (on metal parts) conforming to IEC 61000-4-2
8 kV in free air (in insulating parts) conforming to IEC 61000-4-2
This spec is not available in the specification table.
Resistance To Fast Transients
2 kV conforming to IEC 61000-4-4
This spec is not available in the specification table.
[Us] Rated Supply Voltage
12...24 V AC/DC
This spec is not available in the specification table.
Supply Voltage Limits
6…30 V AC/DC
This spec is not available in the specification table.
Light Source
LED
This spec is not available in the specification table.
Bulb Base
Integral LED
This spec is not available in the specification table.
Signalling Type
Steady
This spec is not available in the specification table.
Current Consumption
15 mA
This spec is not available in the specification table.
Surge Withstand
1 kV direct contact conforming to IEC 61000-4-5
2 kV in free air conforming to IEC 61000-4-5
This spec is not available in the specification table.
Resistance To Electromagnetic Fields
10 V/m conforming to IEC 61000-4-3
This spec is not available in the specification table.
Electromagnetic Emission
Class B conforming to IEC 55011
This spec is not available in the specification table.
