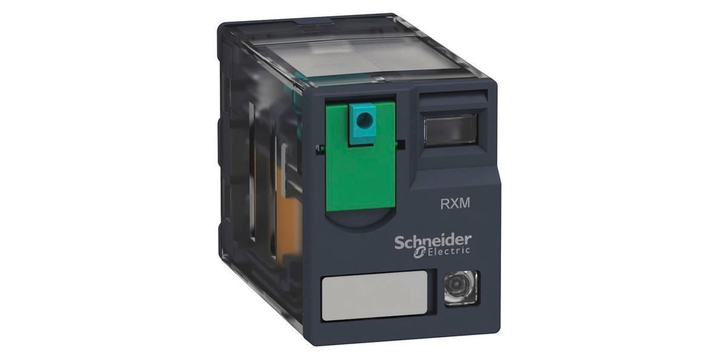

Schneider Electric RXM2AB1JD Plug in Power Relay, 12V Dc Coil, 12A Switching Current, Dpdt
Schneider Electric RXM2AB1JD Plug in Power Relay, 12V Dc Coil, 12A Switching Current, Dpdt
| Brand: | SCHNEIDER ELECTRIC |
| Model: | RXM2AB1JD |
Specifications
Please select at least one specification below.
Length
21 mm
Mounting Type
Plug In
Depth
47.7 mm
Height
27 mm
Contact Material
Silver Alloy
Contact Configuration
DPDT
Coil Voltage
12V dc
Standards Met
CE, CSA, EN/IEC, GOST, Lloyd's, REACH, RoHS Compliant, UL
Minimum Operating Temperature
-40°C
Maximum Operating Temperature
+55°C
Terminal Type
Plug In
Maximum Switching Voltage AC
250 V
Coil Power
900 mW
Coil Resistance
160 Ω
Maximum Switching Power DC
336 W
Switching Current
12 A
Maximum Switching Power AC
3 kVA
Number of Poles
2
This spec is not available in the specification table.
Life
100000 cycles
This spec is not available in the specification table.
Latching
No
This spec is not available in the specification table.
Series Name
Harmony Relay RXM
This spec is not available in the specification table.
Better World Product
Yes
This spec is not available in the specification table.
Better World Verification
Green Premium
This spec is not available in the specification table.
Product Description
AU$ 17.62
| Units | Discount | Unit Price |
|---|---|---|
| 1 | - | AU$ 17.62 |
Quantity:
EA
