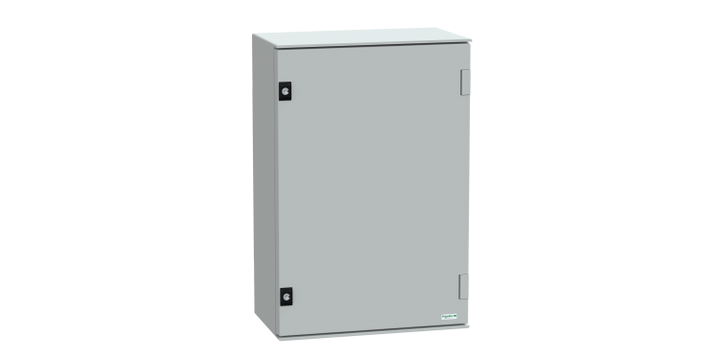

Schneider Electric NSYPLM64G Wall Mounted Polyester Enclosure, Thalassa Plm, Plain Door, 647x436x250mm, IP66, IK10, Ral 7035
Schneider Electric NSYPLM64G Wall Mounted Polyester Enclosure, Thalassa Plm, Plain Door, 647x436x250mm, IP66, IK10, Ral 7035
Brand: | SCHNEIDER ELECTRIC |
Model: | NSYPLM64G |
Specifications
Please select at least one specification below.
Category
Compact enclosure
Standards
NEMA classification 13
NEMA classification 4X
IEC 62208
IP degree of protection
IP66 conforming to IEC 60529
Product Certifications
UL
Enclosure Mounting
Wall mounted
Operating Temperature
-40…80 °C
Enclosure Nominal Height
647 mm
Enclosure Nominal Width
436 mm
Enclosure Nominal Depth
250 mm
Range
Thalassa
This spec is not available in the specification table.
Product name
Thalassa PLM
This spec is not available in the specification table.
IK degree of protection
IK10 conforming to IEC 62262
This spec is not available in the specification table.
Device composition
1 body
1 door
2 lock
This spec is not available in the specification table.
Enclosure Type
Multi-purpose
This spec is not available in the specification table.
Lock Type
3 mm double-bar lock
This spec is not available in the specification table.
Door Type
Plain
This spec is not available in the specification table.
Mounting Plate Description
Without mounting plate
This spec is not available in the specification table.
Removable Parts
Door by hinges
This spec is not available in the specification table.
Accessibility For Operation
Front
This spec is not available in the specification table.
Product Description
AU $ 344.94
