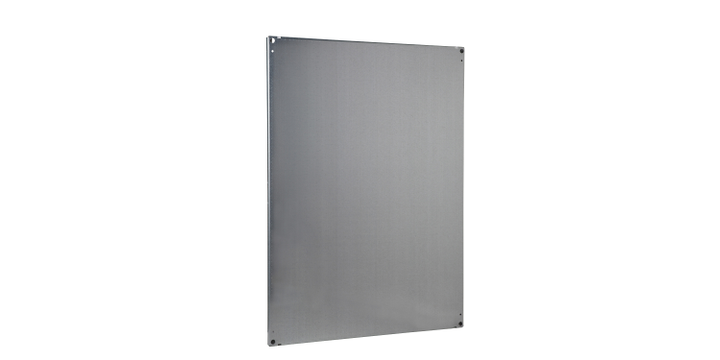

Schneider Electric NSYMP2010 2000x1000 Mm - Spacial SF/SM Mounting Plate
Schneider Electric NSYMP2010 2000x1000 Mm - Spacial SF/SM Mounting Plate
Product Description

Schneider Electric NSYMP2010 2000x1000 Mm - Spacial SF/SM Mounting Plate

Spacial SF/SM mounting plate. H is2000 x W is1000 mm. Depth is 27 mm. Multi-purpose mounting accessory. Fixing mode by brackets. Permanent permissible load is 500 kg intermediate position, 600 kg on back. Galvanised steel. 1 mounting plate, 2 sliding shoes incl.

Main

  • Range: Spacial
  • Accessory/Separate Part Category: Mounting Accessory
  • Product or Component Type: Mounting Plate
  • Device Application: Multi-purpose
  • Enclosure Nominal Dimensions: Not specified
  • Mounting Plate Description: Plain
  • Range Compatibility: Spacial, Spacial SF, Spacial SM, Spacial SFX, Spacial SMX
  • Device Composition: 1 Mounting Plate, 2 Sliding Shoes
  • Quantity per Set: Set of 1
  • Material: Galvanised Steel

Complementary

  • Fixing Mode: By fixing brackets
  • Maximum Load: 300 kg/m²
  • Permanent Permissible Load:
    • 500 kg at intermediate position
    • 600 kg at the back of the enclosure
  • Height:
    • Fixing Centers: 1850 mm
    • Nominal: 2000 mm
    • Real: 1897 mm
  • Width:
    • Fixing Centers: 850 mm
    • Nominal: 1000 mm
    • Real: 896 mm
  • Depth: 27 mm
