Schneider Electric NSYEC1041 One Entry Cable Gland Plate, Panelset Sfn, Spacial Sf, for Electrical Enclosure W1000 D400mm, Fixed by Clips
Schneider Electric NSYEC1041 One Entry Cable Gland Plate, Panelset Sfn, Spacial Sf, for Electrical Enclosure W1000 D400mm, Fixed by Clips
Brand: | SCHNEIDER ELECTRIC |
Model: | NSYEC1041 |
Product Description
Schneider Electric NSYEC1041 One Entry Cable Gland Plate, Panelset Sfn, Spacial Sf, for Electrical Enclosure W1000 D400mm, Fixed by Clips

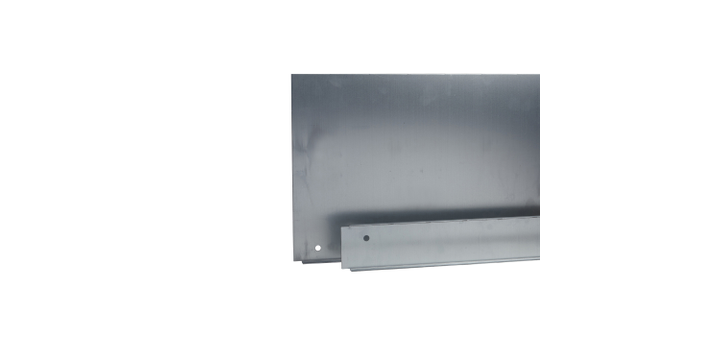

Spacial SF 1 entry cable gland plate. 1000 x 400 mm. Multi-purpose, cable management accessory. Fixed by clips. Mounting on enclosure bottom. 1 cable entry. Galvanised steel. Thickness 1.5 mm. Plate and fixing elements incl. Self extinguishing polyurethane adhesive gasket with cross-section of 15 x 25 mm incl.
Main
- Range: Spacial
- Product or Component Type: Cable Gland Plate
- Accessory/Separate Part Category: Cable Management Accessory
- Application: Multi-purpose
- Range Compatibility: Spacial, Spacial SF
- Mounting Location: Enclosure Bottom
- Cable Gland Type: Standard
- Cable Entry: 1 Entry
- Device Composition:
- Fixing Elements
- 1 Plate
- Self-extinguishing polyurethane adhesive gasket with cross-section of 15 x 25 mm
- Quantity per Set: Set of 1
- Material: Galvanised Steel
Complementary
- Height: 30 mm
- Width:
- Nominal: 1000 mm
- Useful: 816 mm
- Real: 855 mm
- Depth:
- Nominal: 400 mm
- Thickness: 1.5 mm
AU $ 92.83
