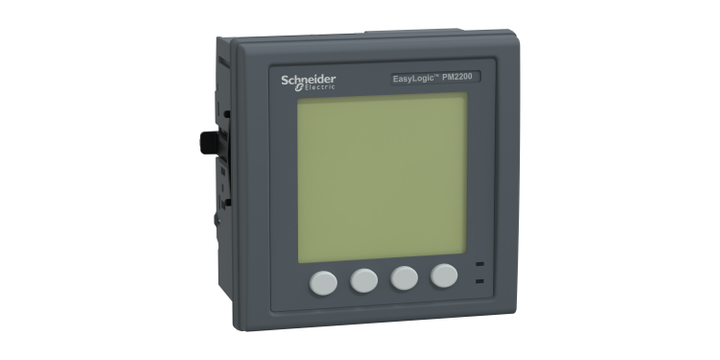

Schneider Electric METSEPM2210 Easylogic PM2210, Power & Energy Meter, Total Harmonic, Lcd Display, Pulse, Class 1
Schneider Electric METSEPM2210 Easylogic PM2210, Power & Energy Meter, Total Harmonic, Lcd Display, Pulse, Class 1
Brand: | SCHNEIDER ELECTRIC |
Model: | METSEPM2210 |
Specifications
Please select at least one specification below.
Range
EasyLogic
[In] Rated Current
1 A
5 A
Type of Measurement
Apparent power min/max, total
Active and reactive power min/max, total
Current min/max, avg
Voltage min/max, avg
Frequency min/max, avg
Total current harmonic distortion THD (I) per phase
Total voltage harmonic distortion THD (U) per phase
Power factor min/max, avg
Apparent energy total
Active and reactive energy total
Display Type
Backlit LCD
Ambient Air Temperature for Operation
-10…60 °C
Width
96 mm
This spec is not available in the specification table.
Material
Polycarbonate
This spec is not available in the specification table.
Control Type
4 x button
This spec is not available in the specification table.
Local Signalling
Red LED: output signal 1...9999000 pulse/ k_h (kWh, kVAh, kVARh)
Green LED: module operating (RUN)
This spec is not available in the specification table.
Device Short Name
PM2210
This spec is not available in the specification table.
Product or Component Type
Power meter
This spec is not available in the specification table.
Product Name
EasyLogic PM2200
This spec is not available in the specification table.
Depth
76.09 mm total:
61.64 mm embedded:
This spec is not available in the specification table.
Device Application
Sub billing
Power monitoring
This spec is not available in the specification table.
Mounting Support
Framework
This spec is not available in the specification table.
Height
96 mm
This spec is not available in the specification table.
Mounting Mode
Clip-on
This spec is not available in the specification table.
Accuracy class
Class 1 active energy conforming to IEC 62053-21
Class 1 reactive energy conforming to IEC 62053-24
This spec is not available in the specification table.
Network Frequency
60 Hz
50 Hz
This spec is not available in the specification table.
Sampling rate
64 samples/cycle
This spec is not available in the specification table.
Measurement current
5…6000 mA
This spec is not available in the specification table.
Communication Port Protocol
POP
This spec is not available in the specification table.
Number of outputs
1 pulse
This spec is not available in the specification table.
Connections - Terminals
Current transformer: screw connection (bottom) 6
Voltage inputs: screw connection (top) 4
This spec is not available in the specification table.
Overvoltage Category
III
This spec is not available in the specification table.
Product certifications
CE conforming to IEC 61010-1
CULus conforming to UL 61010-1
CULus conforming to CSA C22.2 No 61010-1
RCM
EAC
C-Tick
This spec is not available in the specification table.
IP Degree of Protection
IP54 front: conforming to IEC 60529
IP30 body: conforming to IEC 60529
This spec is not available in the specification table.
Pollution Degree
2
This spec is not available in the specification table.
Relative Humidity
5…95 % at 50 °C
This spec is not available in the specification table.
Ambient Air Temperature for Storage
-25…70 °C
This spec is not available in the specification table.
Operating Altitude
<= 2000 m
This spec is not available in the specification table.
Power quality analysis
total harmonic distortion
This spec is not available in the specification table.
Maximum power consumption in VA
6 VA at 277 V AC
This spec is not available in the specification table.
Ride-through time
100 ms 120 V AC typical
400 ms 230 V AC typical
50 ms 125 V DC typical
This spec is not available in the specification table.
Display resolution
128 x 128 pixels
This spec is not available in the specification table.
Measurement voltage
35…480 V AC 50/60 Hz between phases
20…277 V AC 50/60 Hz between phase and neutral
480…999000 V AC 50/60 Hz with external VT
This spec is not available in the specification table.
Frequency measurement range
45…65 Hz
This spec is not available in the specification table.
Measurement accuracy
Apparent power +/- 1 %
Active energy +/- 1 %
Reactive energy +/- 1 %
Active power +/- 1 %
Voltage +/- 0.5 %
Power factor +/- 0.01
Current +/- 0.5 %
Frequency +/- 0.05 %
This spec is not available in the specification table.
Electromagnetic Compatibility
Electrostatic discharge conforming to IEC 61000-4-2
Radiated radio-frequency electromagnetic field immunity test conforming to IEC 61000-4-3
Electrical fast transient/burst immunity test conforming to IEC 61000-4-4
Surge immunity test conforming to IEC 61000-4-5
Conducted RF disturbances conforming to IEC 61000-4-6
Magnetic field at power frequency conforming to IEC 61000-4-8
Voltage dips and interruptions immunity test conforming to IEC 61000-4-11
Emission tests conforming to FCC part 15 class A
This spec is not available in the specification table.
Information displayed
Demand current (past value)
Demand current (present value)
Demand power (past value)
Demand power (present value)
Voltage
Current
Frequency
Energy consumption
Harmonic distortion
Power factor
Active power
Apparent power
Reactive power
Unbalanced in %
Harmonic amplitude
This spec is not available in the specification table.
Flame retardance
V-0 conforming to UL 94
This spec is not available in the specification table.
Metering type
Voltage U, U21, U32, U13, V, V1, V2, V3
Unbalance current
Calculated neutral current
Apparent power S, S1, S2, S3
Peak demand currents
Current I, I1, I2, I3
Active, reactive, apparent energy (signed, four quadrant)
Active power P, P1, P2, P3
Reactive power Q, Q1, Q2, Q3
Peak demand power PM, QM, SM
Demand power P, Q, S
This spec is not available in the specification table.
impulse duration
20 ms
This spec is not available in the specification table.
Measurement category
Category III 480 V
Category II 480…600 V
This spec is not available in the specification table.
Maximum power consumption in W
3.3 W (power lines (AC))
2 W at 277 V (power lines (DC))
This spec is not available in the specification table.
Compatibility Code
PM2210
This spec is not available in the specification table.
[Us] Rated Supply Voltage
44...277 V AC 45...65 Hz +/- 10 %
44...277 V DC +/- 10 %
This spec is not available in the specification table.
Mounting position
Vertical
This spec is not available in the specification table.
input impedance
Current (impedance <= 0.3 mOhm)
Voltage (impedance > 5 MOhm)
This spec is not available in the specification table.
Tamperproof of settings
Protected by access code
This spec is not available in the specification table.
Display colour
Monochrome
This spec is not available in the specification table.
Demand intervals
Configurable from 1 to 60 min
This spec is not available in the specification table.
POP parameter
Pulse: 20 ms (5...40 V DC, 20 mA max)1...9999000 pulse/ k_h (kWh, kVAh, kVARh)
This spec is not available in the specification table.
Cybersecurity
Enable/disable communication ports
This spec is not available in the specification table.
Communication Service
Remote monitoring
This spec is not available in the specification table.
Provided equipment
1 x installation guide
This spec is not available in the specification table.
Electrical insulation class
Class II
Double insulation
This spec is not available in the specification table.
Service life
7 year(s)
This spec is not available in the specification table.
language
German
English
Chinese
Russian
Spanish
Portuguese
French
This spec is not available in the specification table.
Product Description
AU $ 525.18
