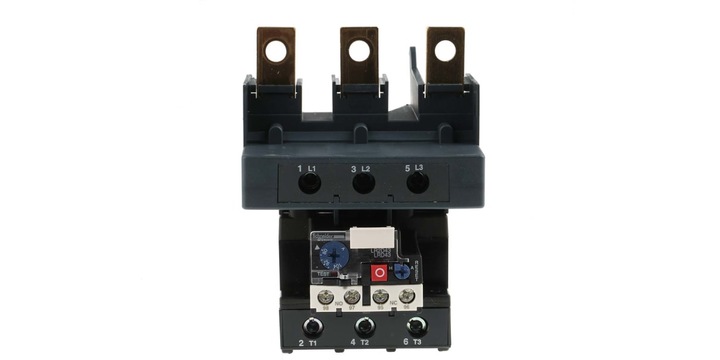

Schneider Electric LRD4365 Lrd Overload Relay 1NO + 1NC, 5 a Contact Rating, 100 W, 600 Va, 3P, Tesys D

View Brand

Schneider Electric LRD4365 Lrd Overload Relay 1NO + 1NC, 5 a Contact Rating, 100 W, 600 Va, 3P, Tesys D

Brand:	SCHNEIDER ELECTRIC
Model:	LRD4365

Specifications

View other Overload Relays dimensions or variations

Ambient Air Temperature For Operation

-20 → +60 °C

[Us] Rated Supply Voltage

690 V ac

Range

TeSys D

Connections - Terminals

Screw

Series

LRD

Pole Configuration

Depth

132 mm

Mounting Style

Direct Contactor

Minimum Operating Temperature

-20°C

Maximum Operating Temperature

+60°C

Reset Method

Automatic, Manual

Power Rating

100 W, 600 VA

Contact Current Rating

5 A

Normal State Configuration

1NO + 1NC

Better World Product

Yes

Better World Verification

Green Premium

Number Of Auxiliary Contacts

Product Description

AU $ 460.12
