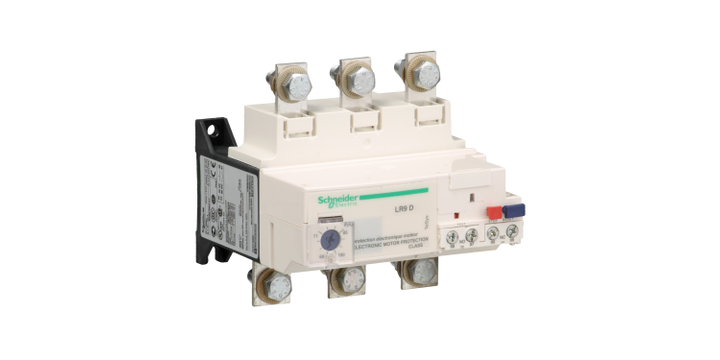

Schneider Electric LR9D5569 Thermal Overload Relays, Tesys Deca, 90...150A, Class 20
Schneider Electric LR9D5569 Thermal Overload Relays, Tesys Deca, 90...150A, Class 20
Brand: | SCHNEIDER ELECTRIC |
Model: | LR9D5569 |
Specifications
Please select at least one specification below.
Network Type
AC
Network Frequency
50...60 Hz
Standards
EN/IEC 60947-4-1
EN/IEC 60947-5-1
UL 60947-4-1
UL 60947-5-1
CSA C22.2 No 60947-4-1
CSA C22.2 No 60947-5-1
GB/T 14048.4
GB/T 14048.5
[Ui] Rated Insulation Voltage
Power circuit: 1000 V conforming to IEC 60947-4-1
Power circuit: 600 V conforming to CSA
Power circuit: 600 V conforming to UL
[Uimp] Rated Impulse Withstand Voltage
6 kV conforming to IEC 60947-1
Ambient Air Temperature For Operation
-20…60 °C without derating conforming to IEC 60947-4-1
Ambient Air Temperature For Storage
-60…70 °C
[Ith] Conventional Free Air Thermal Current
5 A for signalling circuit
Auxiliary Contact Composition
1 NO + 1 NC
Thermal Protection Adjustment Range
90…150 A
[Us] Rated Supply Voltage
24 V DC
Control Type
Red push-button: stop
Blue push-button: reset
This spec is not available in the specification table.
Device Short Name
LR9D
This spec is not available in the specification table.
Product Or Component Type
Electronic thermal overload relay
This spec is not available in the specification table.
Range
TeSys
This spec is not available in the specification table.
Product Name
TeSys LRD
TeSys Deca
This spec is not available in the specification table.
Mounting Support
Under contactor
Rail
This spec is not available in the specification table.
Connections - Terminals
Power circuit: bars
Control circuit: screw clamp terminals 1 cable(s) 0.5…1.5 mm² flexible without cable end
Control circuit: screw clamp terminals 2 cable(s) 0.5…1.5 mm² flexible without cable end
Alarm circuit: screw clamp terminals 1 cable(s) 0.5…1.5 mm² flexible without cable end
This spec is not available in the specification table.
Ip Degree Of Protection
IP20 conforming to IEC 60529
This spec is not available in the specification table.
Operating Altitude
<= 2000 m without derating
This spec is not available in the specification table.
Tightening Torque
Alarm circuit: 0.45 N.m - on screw clamp terminals
Power circuit: 18 N.m - on bars M8
Control circuit: 1.2 N.m - on screw clamp terminals
This spec is not available in the specification table.
[Ue] Rated Operational Voltage
690 V AC 0...400 Hz for power circuit conforming to IEC 60947-4-1
This spec is not available in the specification table.
Associated Fuse Rating
4 A gG for signalling circuit
4 A BS for signalling circuit
This spec is not available in the specification table.
Product Certifications
UL
CSA
CCC
UKCA
This spec is not available in the specification table.
Mechanical Robustness
Vibrations: 2 Gn, 5...300 Hz conforming to IEC 60068-2-6
Shocks: 13 Gn for 11 ms conforming to IEC 60068-2-7
This spec is not available in the specification table.
Phase Failure Sensitivity
Tripping in 4 s +/- 20 % conforming to IEC 60947-4-1
This spec is not available in the specification table.
Product Compatibility
NSX circuit breaker
LC1D115
LC1D150
This spec is not available in the specification table.
Tripping Threshold
1.05 +/- 0.06 In alarm conforming to IEC 60947-4-1
1.12 +/- 0.06 In de-energisation conforming to IEC 60947-4-1
This spec is not available in the specification table.
Relay Application
Motor protection
This spec is not available in the specification table.
Signalling Function
Alarm
This spec is not available in the specification table.
Dielectric Strength
1.89 kV at 50 Hz conforming to IEC 60947-1
This spec is not available in the specification table.
Climatic Withstand
conforming to IACS E10
This spec is not available in the specification table.
Thermal Overload Class
Class 20 conforming to IEC 60947-4-1
This spec is not available in the specification table.
Supply Voltage Limits
17…32 V
This spec is not available in the specification table.
Temperature Compensation
-20…60 °C
This spec is not available in the specification table.
Switching Capacity In Ma
0...150 mA
This spec is not available in the specification table.
Maximum Voltage Drop
<2.5 V closed state
This spec is not available in the specification table.
Product Description
AU $ 866.37
