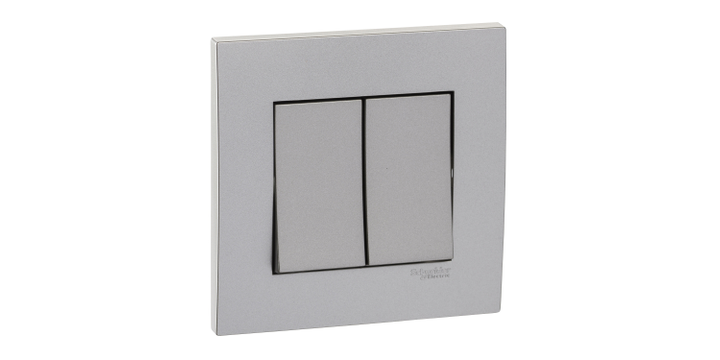

Schneider Electric KB32_1_AS Switch, Vivace, 16AX, 250V, 1 Way, 2 Gang, Aluminium Silver
Schneider Electric KB32_1_AS Switch, Vivace, 16AX, 250V, 1 Way, 2 Gang, Aluminium Silver
Brand: | SCHNEIDER ELECTRIC |
Model: | KB32_1_AS |
Specifications
Please select at least one specification below.
Width
86 mm
Material
Polycarbonate: grid plate
Polycarbonate: surround
Polycarbonate: base
Depth
37 mm
Device application
Control switch
Standards
MS IEC 60669-1
SS 227
IEC 60669-1
Connections -Terminals
Pillar terminal
Height
86 mm
IP degree of protection
IP20
Relative humidity
0…95 %
Number of gangs
2 gangs
Colour tint
Aluminium silver
Device mounting
Flush
Switch function
1-way
Rated Current
16 AX at 250 V AC, inductive
16 AX at 250 V AC, fluorescent
16 A at 250 V AC, resistive
Clamping connection capacity
<= 2.5 mm² for rigid or stranded cable(s)
Environmental characteristic
Indoor use
Device short name
KB32
This spec is not available in the specification table.
Product or component type
Switch
This spec is not available in the specification table.
Range
Vivace
This spec is not available in the specification table.
Network type
AC
This spec is not available in the specification table.
Surface treatment
Painted
This spec is not available in the specification table.
Network frequency
50/60 Hz
This spec is not available in the specification table.
Technology type
Electromechanical
This spec is not available in the specification table.
Mounting Support
Wall mounted
This spec is not available in the specification table.
Ambient air temperature for operation
-5…40 °C
This spec is not available in the specification table.
Operating altitude
0...2000 m
This spec is not available in the specification table.
Wire stripping length
12 mm
This spec is not available in the specification table.
Tightening torque
0.4 N.m
This spec is not available in the specification table.
Additional switch application
On/off switching
This spec is not available in the specification table.
Actuator
Rocker
This spec is not available in the specification table.
Surface finish
Matt
This spec is not available in the specification table.
[Ue] rated operational voltage
250 V AC
This spec is not available in the specification table.
Projecting depth
8 mm
This spec is not available in the specification table.
Fixing mode
By screw M3.5
This spec is not available in the specification table.
Fixing center
60.3 mm
This spec is not available in the specification table.
Embedding depth
25 mm
This spec is not available in the specification table.
Number of terminals
4
This spec is not available in the specification table.
Contacts material
Brass and phosphor bronze
This spec is not available in the specification table.
Terminal identifier
L1
L2
COM
This spec is not available in the specification table.
Product Description
AU $ 142.22
Quantity:
EA
MOQ of 8 EA
Bundle of 8 EA
This item is sold by0
