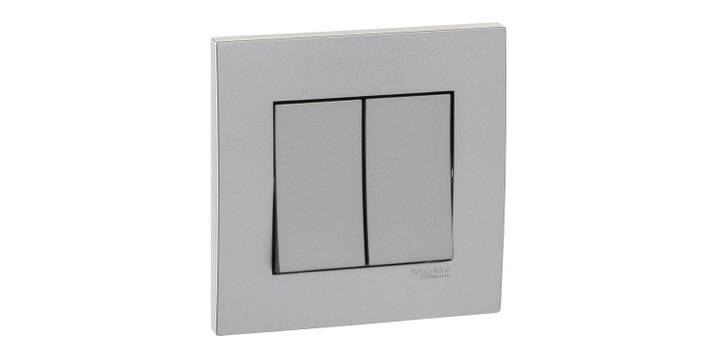

Schneider Electric KB32_1_AS_G2 Vivace 16AX 250V 2Gang 1 Way Switch,aluminium Silver
Schneider Electric KB32_1_AS_G2 Vivace 16AX 250V 2Gang 1 Way Switch,aluminium Silver
Brand: | SCHNEIDER ELECTRIC |
Model: | KB32_1_AS_G2 |
Specifications
Please select at least one specification below.
Width
87 mm
Material
Polycarbonate: grid plate
Polycarbonate: surround
Polycarbonate: base
Device application
Control
Standards
IEC 60669-1
MS IEC 60669-1
SS 227
Connections -Terminals
Pillar terminals
Height
87 mm
Relative humidity
0…95 %
Number of gangs
2 gangs
Colour tint
Aluminium silver
Device mounting
Flush
Switch function
1-way
Rated Current
16 AX at 250 V AC, inductive
16 AX at 250 V AC, fluorescent
Clamping connection capacity
2.5 mm²
Environmental characteristic
Indoor use
Device short name
KB32
This spec is not available in the specification table.
Product or component type
Switch
This spec is not available in the specification table.
Range
Vivace
This spec is not available in the specification table.
Network frequency
50 Hz
This spec is not available in the specification table.
Mounting Support
Wall mounted
This spec is not available in the specification table.
Ambient air temperature for operation
-5…40 °C
This spec is not available in the specification table.
Tightening torque
0.4 N.m
This spec is not available in the specification table.
Actuator
Rocker
This spec is not available in the specification table.
[Ue] rated operational voltage
250 V AC
This spec is not available in the specification table.
Projecting depth
8 mm
This spec is not available in the specification table.
Fixing mode
By screw M3.5
This spec is not available in the specification table.
Fixing center
60.3 mm
This spec is not available in the specification table.
Embedding depth
35 mm
This spec is not available in the specification table.
Contacts material
Brass and phosphor bronze
This spec is not available in the specification table.
Terminal identifier
L2
COM
L1
This spec is not available in the specification table.
Product Description
AU $ 17.30
