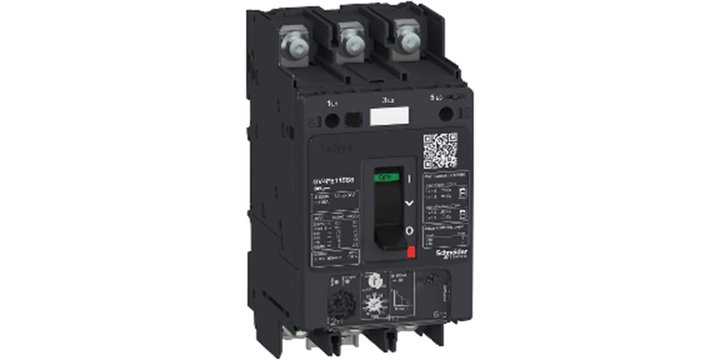

Schneider Electric GV4PE50B6 GV4PE 3 Pole 690V Ac Voltage Rating, 50A Current Rating - Tesys Thermal Circuit Breaker
Schneider Electric GV4PE50B6 GV4PE 3 Pole 690V Ac Voltage Rating, 50A Current Rating - Tesys Thermal Circuit Breaker
Brand: | SCHNEIDER ELECTRIC |
Model: | GV4PE50B6 |
Specifications
Please select at least one specification below.
Series
GV4PE
Current Rating
50 A
Range
TeSys
Number of Poles
3P
Rated AC Voltage
690 V
Breaking Capacity at Maximum Voltage Rating
10 kA @ 500 V ac
Width
116 mm
This spec is not available in the specification table.
Circuit Breaker Type
Thermal Magnetic Circuit Breaker
This spec is not available in the specification table.
Voltage Rating
690 V ac
This spec is not available in the specification table.
Overall Length
81 mm
This spec is not available in the specification table.
Overall Depth
155 mm
This spec is not available in the specification table.
Overall Dimensions
81 x 116 x 155 mm
This spec is not available in the specification table.
Better World Product
Yes
This spec is not available in the specification table.
Better World Verification
Green Premium
This spec is not available in the specification table.
Tripping Mechanism
Thermal-Magnetic
This spec is not available in the specification table.
Product Description
AU $ 981.71
