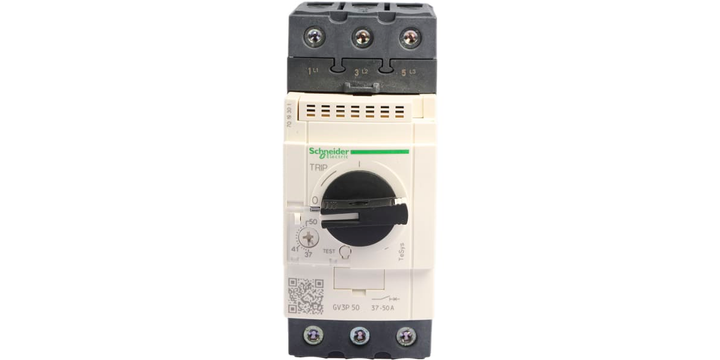

Schneider Electric GV3P50 GV3 3 Pole 690V Voltage Rating Din Rail Mount, 50A Current Rating - Tesys Thermal Circuit Breaker
Schneider Electric GV3P50 GV3 3 Pole 690V Voltage Rating Din Rail Mount, 50A Current Rating - Tesys Thermal Circuit Breaker
Brand: | SCHNEIDER ELECTRIC |
Model: | GV3P50 |
Specifications
Please select at least one specification below.
Series
GV3
Current Rating
50 A
Range
TeSys
Number of Poles
3P
Rated AC Voltage
690 V
Breaking Capacity at Maximum Voltage Rating
5 kA
Width
55 mm
This spec is not available in the specification table.
Application
Motors
This spec is not available in the specification table.
Circuit Breaker Type
Thermal Magnetic Circuit Breaker
This spec is not available in the specification table.
Voltage Rating
690 V
This spec is not available in the specification table.
Mounting Style
DIN Rail Mount
This spec is not available in the specification table.
Overall Length
132 mm
This spec is not available in the specification table.
Overall Depth
136 mm
This spec is not available in the specification table.
Overall Dimensions
132 x 55 x 136 mm
This spec is not available in the specification table.
Terminal Contact Type
Screw
This spec is not available in the specification table.
Better World Product
Yes
This spec is not available in the specification table.
Better World Verification
Green Premium
This spec is not available in the specification table.
Tripping Mechanism
Thermal-Magnetic
This spec is not available in the specification table.
Product Description
AU $ 558.96
Quantity:
EA
This item is sold by
SG-4570630354
