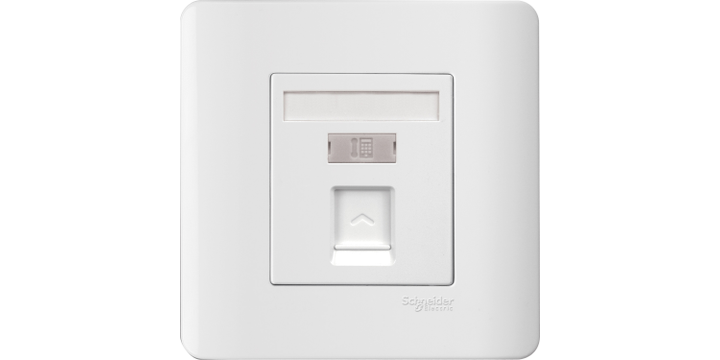

Schneider Electric E8431RJS4_WE 1 Gang Telephone Socket on Shuttered Wallplate, White
Schneider Electric E8431RJS4_WE 1 Gang Telephone Socket on Shuttered Wallplate, White
Brand: | SCHNEIDER ELECTRIC |
Model: | E8431RJS4_WE |
Specifications
Please select at least one specification below.
Width
87 mm
Material
PC: housing
Polycarbonate: plastic part
Product Or Component Type
Telephone socket
Depth
36 mm
Standards
ASTMD4566-98
TIA/EIA-568-B.2-1
Height
87 mm
Ambient Air Temperature For Operation
-5…35 °C
Number Of Gangs
1 gang
Colour Tint
White
Device Mounting
Flush
Surface
Rated Current
1.5 A
Contact Resistance
1 µOhm
Awg Gauge
AWG 26...AWG 22 (4 twisted pair cables)
Range Of Product
ZENcelo
This spec is not available in the specification table.
Relative Humidity
0…95 %
This spec is not available in the specification table.
Contacts Material
Contact: phosphor bronze with gold plating
IDC contact: phosphor bronze with nickel plating
This spec is not available in the specification table.
Environmental Characteristic
No UV resistant
This spec is not available in the specification table.
Insulation Resistance
>= 200 MOhm
This spec is not available in the specification table.
Dielectric Strength
1000 V for 60 s at 60 Hz
This spec is not available in the specification table.
Socket Additional Information
Shuttered
This spec is not available in the specification table.
Communication Network Category
Voice: 3
This spec is not available in the specification table.
Minimum Return Loss
23 dB
This spec is not available in the specification table.
Product Description
AU $ 55.13
