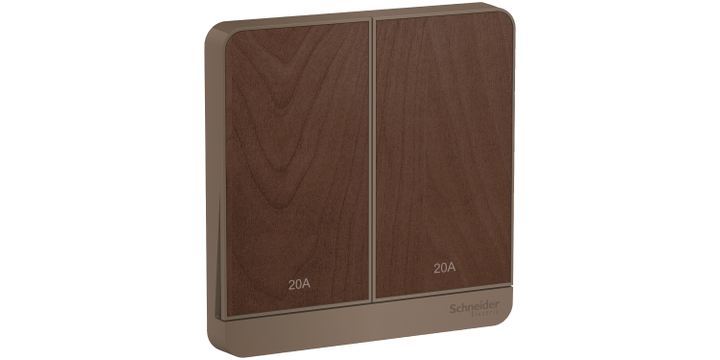

Schneider Electric E8332D20N_WD_G2 Avataron, 2 Switches, 20A, 250V, 2P, Led, Wood
Schneider Electric E8332D20N_WD_G2 Avataron, 2 Switches, 20A, 250V, 2P, Led, Wood
Brand: | SCHNEIDER ELECTRIC |
Model: | E8332D20N_WD_G2 |
Specifications
Please select at least one specification below.
Width
86 mm
Material
Polycarbonate: grid plate
Polycarbonate: base
Polycarbonate: dolly
Polycarbonate: frame
Polycarbonate + GF 20 %: actuator
Local signalling
On: LED indicator, LED (amber)
Depth
32 mm
Device application
Control
Standards
BS EN 60669-1
MS IEC 60669-1
SS 227-1
IEC 60669-1
Connections -Terminals
Brass terminal
Height
86 mm
IP degree of protection
IP20
Relative humidity
0…95 %
Number of gangs
2 gangs
Colour tint
Wood
Device mounting
Flush
Switch function
2-pole 1-way
Rated Current
20 A at 250 V AC 50/60 Hz
Clamping connection capacity
3 x 2.5 mm² for stranded cable(s)
1 x 4 mm² for stranded cable(s)
1 x 6 mm² for stranded cable(s)
Environmental characteristic
UV resistant
Load type
Fluorescent lamps
Small motor load
Resistive
Incandescent lamp
Serial boost load (SBL)
Product or component type
Switch
This spec is not available in the specification table.
Maximum ambient air temperature for operation
45 °C
This spec is not available in the specification table.
Operating altitude
2000 m
This spec is not available in the specification table.
