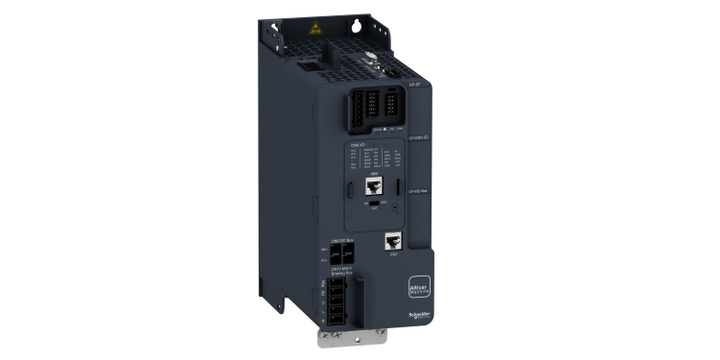

Schneider Electric ATV340U75N4 Variable Speed Drive, Altivar Machine ATV340, 7.5kW, Heavy Duty, 400V, 3 Phases

View Brand

Schneider Electric ATV340U75N4 Variable Speed Drive, Altivar Machine ATV340, 7.5kW, Heavy Duty, 400V, 3 Phases

Brand:	SCHNEIDER ELECTRIC
Model:	ATV340U75N4

Technical Data Sheets

Environmental disclosure

Specifications

View other Inverter Drives dimensions or variations

Range of Product

Altivar Machine ATV340

Mounting Mode

Cabinet mount

Standard

IEC 61800-3 IEC 61800-5-1 IEC 60721-3 IEC 61508 IEC 13849-1 UL 618000-5-1 UL 508C

IP Degree of Protection

IP20

Ambient Air Temperature for Operation

-15…50 °C without derating (vertical position) 50…60 °C with derating factor (vertical position)

Ambient Air Temperature for Storage

-40…70 °C

Operating Altitude

<= 3000 m with current derating above 1000m

[Us] Rated Supply Voltage

380...480 V - 15...10 %

Supply Frequency

50...60 Hz +/- 5 %

Switching Frequency

2...16 kHz adjustable 4...16 kHz with derating factor

Noise Level

46.5 dB

Transmission Rate

4.8 kbit/s 9.6 kbit/s 19.2 kbit/s 38.4 kbit/s

Power Dissipation in W

Natural convection: 180 W at 380 V, switching frequency 4 kHz (heavy duty) Forced convection: 180 W at 380 V, switching frequency 4 kHz (heavy duty) Natural convection: 249 W at 380 V, switching frequency 4 kHz (normal duty) Forced convection: 249 W at 380 V, switching frequency 4 kHz (normal duty)

Continuous Output Current

24 A at 4 kHz for normal duty 16.5 A at 4 kHz for heavy duty

Line Current

25.6 A at 380 V without line choke (heavy duty) 20.4 A at 480 V without line choke (heavy duty) 22 A at 380 V with external line choke (normal duty) 17.7 A at 480 V with external line choke (normal duty) 14.6 A at 380 V with external line choke (heavy duty) 12.1 A at 480 V with external line choke (heavy duty)

Apparent Power

17 kVA at 480 V (normal duty) 17 kVA at 480 V (heavy duty)

Maximum Transient Current

26.4 A during 60 s (normal duty) 24.8 A during 60 s (heavy duty) 32.4 A during 2 s (normal duty) 29.7 A during 2 s (heavy duty)

Maximum Input Current

25.6 A

Maximum Output Voltage

480 V

Nominal Output Current

16.5 A

Width

110.0 mm

Product or Component Type

Variable speed drive

Depth

234.0 mm

Height

270.0 mm

Overvoltage Category

Class III

Pollution Degree

Marking

Analog Input Type

AI1 software-configurable current: 0...20 mA, impedance: 250 Ohm, resolution 12 bits AI1 software-configurable temperature probe or water level sensor AI1 software-configurable voltage: 0...10 V DC, impedance: 31.5 kOhm, resolution 12 bits AI2 software-configurable voltage: - 10...10 V DC, impedance: 31.5 kOhm, resolution 12 bits

Electromagnetic Compatibility

Electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2 Radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3 Electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4 1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5 Conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6

Motor Power kW

11 kW for normal duty 7.5 kW for heavy duty

Motor Power hp

15 hp for normal duty 10 hp for heavy duty

Minimum Switching Current

Relay output R1B: 5 mA at 24 V DC Relay output R2C: 5 mA at 24 V DC

Certifications

UL CSA TÜV EAC CTick

Operating Position

Vertical +/- 10 degree

Product Specific Application

Machine

Protection Type

Thermal protection: motor Safe torque off: motor Motor phase loss: motor Thermal protection: drive Safe torque off: drive Overheating: drive Overcurrent: drive Output overcurrent between motor phase and earth: drive Output overcurrent between motor phases: drive Short-circuit between motor phase and earth: drive Short-circuit between motor phases: drive Motor phase loss: drive DC Bus overvoltage: drive Line supply overvoltage: drive Line supply undervoltage: drive Input supply loss: drive Exceeding limit speed: drive Break on the control circuit: drive

Connector Type

1 RJ45

Output Voltage

<= power supply voltage

Discrete Input Number

Analogue Input Number

Assembly Style

With heat sink

Maximum Switching Current

Relay output R1C on resistive load, cos phi = 1: 3 A at 250 V AC Relay output R1C on resistive load, cos phi = 1: 3 A at 30 V DC Relay output R1C on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 250 V AC Relay output R1C on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 30 V DC Relay output R2C on resistive load, cos phi = 1: 5 A at 250 V AC Relay output R2C on resistive load, cos phi = 1: 5 A at 30 V DC Relay output R2C on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 250 V AC Relay output R2C on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 30 V DC

Electrical Connection

DC bus: screw terminal 4...6 mm²/AWG 12...AWG 10 Control: screw terminal 0.2...2.5 mm²/AWG 24...AWG 12 Motor: screw terminal 1.5...6 mm²/AWG 14...AWG 10 Line side: screw terminal 2.5...6 mm²/AWG 12...AWG 10

Network Number of Phases

3 phases

Discrete Output Number

2.0

Regulation Loop

Adjustable PID regulator

Maximum Output Frequency

0.599 kHz

Physical Interface

2-wire RS 485

Analogue Output Number

Analogue Output Type

Software-configurable voltage AQ1: 0...10 V DC impedance 470 Ohm, resolution 10 bits Software-configurable current AQ1: 0...20 mA impedance 500 Ohm, resolution 10 bits

EMC Filter

Class C3 EMC filter integrated

Method of Access

Slave Modbus RTU

Type of Cooling

Forced convection

Communication Port Protocol

Modbus serial

Variant

Standard version

Asynchronous Motor Control Profile

Variable torque standard Constant torque standard Optimized torque mode

Synchronous Motor Control Profile

Permanent magnet motor Reluctance motor

Nominal Switching Frequency

4 kHz

Prospective Line Isc

22 kA

Discrete Input Type

PTI programmable as pulse input: 0…30 kHz, 24 V DC (30 V) DI1...DI5 safe torque off, 24 V DC (30 V), impedance: 3.5 kOhm programmable

Discrete Output Type

Programmable output DQ1, DQ2 30 V DC 100 mA

Relay Output Number

Relay Output Type

Relay outputs R1A Relay outputs R1C electrical durability 100000 cycles Relay outputs R2A Relay outputs R2C electrical durability 100000 cycles

Transmission Frame

RTU

Number of Addresses

1…247

Data Format

8 bits, configurable odd, even or no parity

Type of Polarization

No impedance

4 Quadrant Operation Possible

True

Acceleration and Deceleration Ramps

Linear adjustable separately from 0.01...9999 s S, U or customized

Motor Slip Compensation

Automatic whatever the load Can be suppressed Adjustable Not available in permanent magnet motor law

Braking to Standstill

By DC injection

Brake Chopper Integrated

True

Base Load Current at High Overload

16.5 A

Base Load Current at Low Overload

24.0 A

With Safety Function Safely Limited Speed (SLS)

True

With Safety Function Safe Brake Management (SBC/SBT)

True

With Safety Function Safe Operating Stop (SOS)

False

With Safety function Safe Position (SP)

False

With Safety Function Safe Programmable Logic

False

With Safety Function Safe Speed Monitor (SSM)

False

With Safety Function Safe Stop 1 (SS1)

True

With sft fct Safe Stop 2 (SS2)

False

With Safety Function Safe Torque Off (STO)

True

With Safety Function Safely Limited Position (SLP)

False

With Safety Function Safe Direction (SDI)

False

Isolation

Between power and control terminals

Environmental Class (During Operation)

Class 3C3 according to IEC 60721-3-3 Class 3S3 according to IEC 60721-3-3

Maximum Acceleration Under Shock Impact (During Operation)

70 m/s² at 22 ms

Maximum Acceleration Under Vibrational Stress (During Operation)

5 m/s² at 9...200 Hz

Maximum Deflection Under Vibratory Load (During Operation)

1.5 mm at 2...9 Hz

Permitted Relative Humidity (During Operation)

Class 3K5 according to EN 60721-3

Volume of Cooling Air

76.0 m3/h

Ambient Air Transport Temperature

-40…70 °C

Option Card

Communication module, Profibus DP V1 Communication module, PROFINET Communication module, DeviceNet Communication module, CANopen Communication module, EtherCAT

Number of Preset Speeds

16 preset speeds

Product Description
