Schneider Electric A9PA4720 Acti 9 Acti9 iDT40N Xa Mcb, 3P+N, 20A Curve C, 400V Ac

View Brand

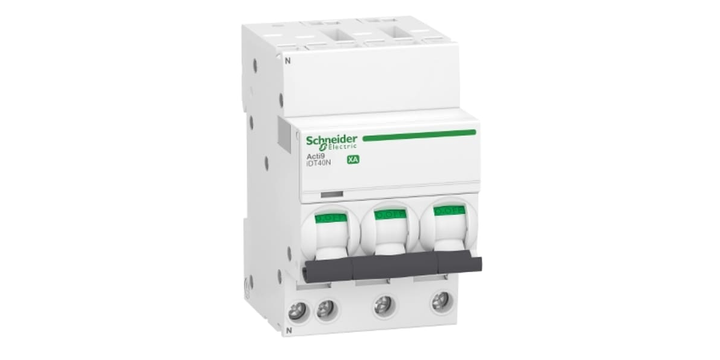

Schneider Electric A9PA4720 Acti 9 Acti9 iDT40N Xa Mcb, 3P+N, 20A Curve C, 400V Ac

Brand:	SCHNEIDER ELECTRIC
Model:	A9PA4720

Specifications

View other Miniature Circuit Breakers - MCBs dimensions or variations

Range

Acti 9

Poles Description

3P+N

[In] Rated Current

20 A

Mounting Support

DIN Rail Mount

Series Name

Acti 9 iDT40N XA

Tripping Characteristics

Type C

Rated AC Voltage

400 V

Product Description

AU $ 282.19

Quantity:

This item is sold by

SG-4570630354
