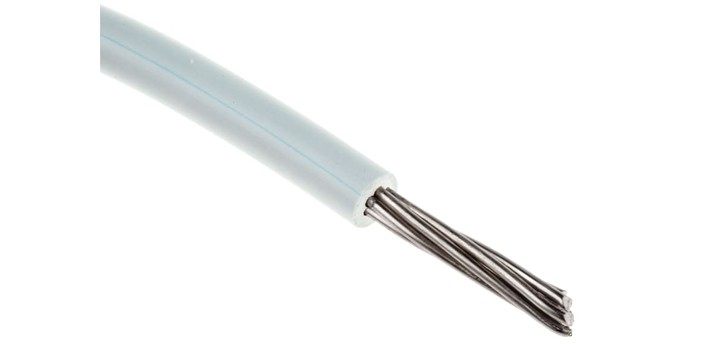

Rs Pro 8850875 White Hook up Wire, 16 Awg, 19/0.3 Mm, 100m, Etfe Insulation (1 Reel of 100 Metres)
Rs Pro 8850875 White Hook up Wire, 16 Awg, 19/0.3 Mm, 100m, Etfe Insulation (1 Reel of 100 Metres)
Brand:
RS Pro
Model:
8850875
Specifications
infotip-icon
View other Electrical Wire  dimensions or variations
Please select at least one specification below.
Length
100 m
Voltage Rating
600 V
Specification Met
RoHS
Sheath Colour
White
Insulation Material
ETFE
American Wire Gauge
16 AWG
Minimum Operating Temperature
-40°C
Maximum Operating Temperature
+135°C
Outer Diameter
2.15 mm
Number of Strands
19
Size of Strands
0.3 mm
Conductor Material
Tinned Copper
Core Strands
19/0.3 mm
Cable Type
Harsh Environment
Cable Shape
Single Core
Insulation Wall Thickness
0.3 mm
