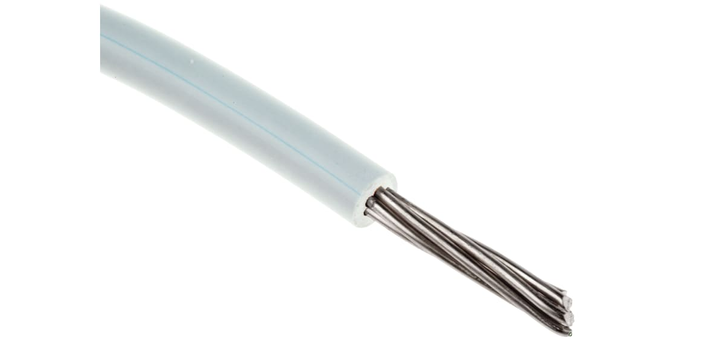

Rs Pro 8775399 White 0.52 Mm² Hook up Wire, 20 Awg, 26/0.16 Mm, 100m, Xlpvc Insulation (1 Reel of 100 Metres)

View Brand

Rs Pro 8775399 White 0.52 Mm² Hook up Wire, 20 Awg, 26/0.16 Mm, 100m, Xlpvc Insulation (1 Reel of 100 Metres)

Brand:	RS Pro
Model:	8775399

Technical Data Sheets

RS Pro Datasheet

Cable Selection Guide

RS PRO Wiring and Connectivity Selection Guide 2021

Specifications

View other Electrical Wire dimensions or variations

Length

100 m

Voltage Rating

150 V

Specification Met

UL 1581, UL 758

Sheath Colour

White

Insulation Material

XLPVC

American Wire Gauge

20 AWG

Maximum Operating Temperature

+80°C

Outer Diameter

1.46 mm

Number of Strands

Size of Strands

0.16 mm

Conductor Material

Tinned Copper

Core Strands

26/0.16 mm

Cable Shape

Single Core

Wire Style

UL1429

Insulation Wall Thickness

0.3 mm

Product Description

AU $ 64.22

Quantity:

This item is sold by

SG-4570630354
